| Place of Origin: | China |
| Brand Name: | Growatt |
| Certification: | CE/RoHS/UN38.3/MSDS |
| Model Number: | SPF 3500 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece per week |
| Product Name: | GROWATT SPF 5000 SPF 3500 | Battery Type: | LiFePO4 |
|---|---|---|---|
| Cycle Life: | 3000cycle/6000cycle | Protection: | Built-in Smart BMS |
| Capacity: | 50Ah/80ah/100Ah/200Ah | Application: | Solar, Wind, UPS Energy Storage |
| Communication Port: | RS232, RS485, CAN |

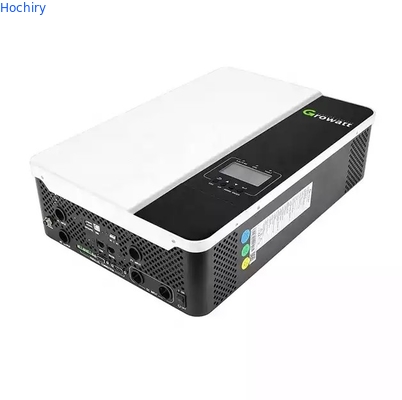

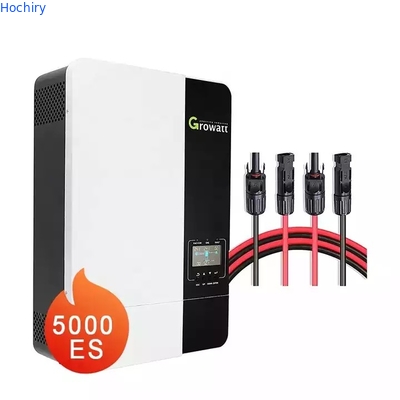

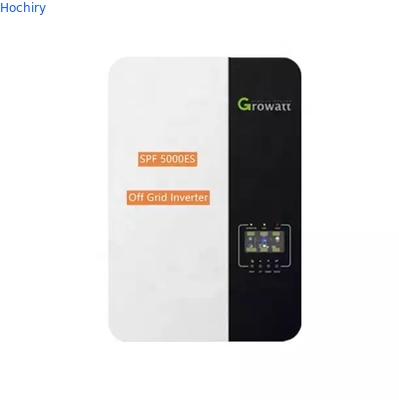

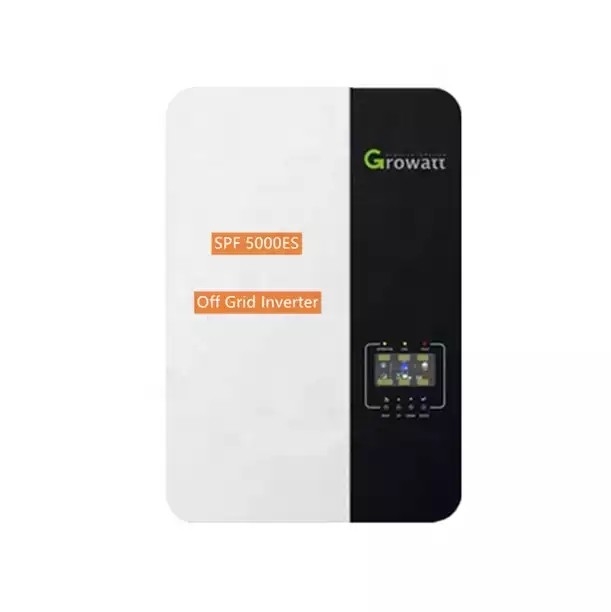

GROWATT SPF 5000 SPF 3500 Hybrid Inverter Off Grid Growatt 5kw 5kva Solar Inverter
|
Datasheet
|
SPF3500ES
|
SPF5000ES
|
||
|
Battery Voltage
|
48VDC
|
|||
|
Battery Type
|
Lithium/Lead-acid
|
|||
|
INVERTER OUTPUT
|
|
|||
|
Rated Power
|
3500VA/ 3500W
|
5000VA/ 5000W
|
||
|
Parallel Capability
|
Yes, 6 units maximum
|
|||
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|||
|
Surge Power
|
7000VA
|
10000VA
|
||
|
Efficiency (Peak)
|
93%
|
|||
|
Waveform
|
Pure sine wave
|
|||
|
Transfer Time
|
10ms typical, 20ms Max
|
|||
|
SOLAR CHARGER
|
|
|||
|
Maximum PV Array Power
|
4500W
|
6000W
|
||
|
MPPT Range @ Operating Voltage
|
|
|||
|
Number of Independent MPP Trackers/ Strings Per MPP Tracker
|
1/1
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|||
|
Maximum Solar Charge Current
|
80A
|
100A
|
||
|
AC CHARGER
|
|
|||
|
Charge Current
|
60A
|
80A
|
||
|
AC Input Voltage
|
230VDC
|
|||
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|||
|
PHYSICAL
|
|
|||
|
Protection Degree
|
IP20
|
|||
|
Dimension (W/H/D)
|
330/485/135mm
|
330/485/135mm
|
||
|
Net Weight
|
11.5kgs
|
12kgs
|
||
|
OPERATING ENVIRONMENT
|
|
|||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|||
|
Altitude
|
＜2000m
|
|||
|
Operating Temperature
|
0℃~55℃
|
|||
|
Storage Temperature
|
-15℃~60℃
|
|||
