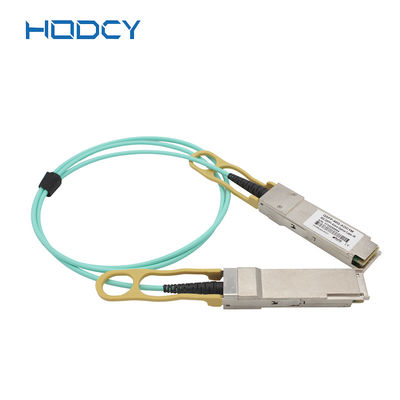

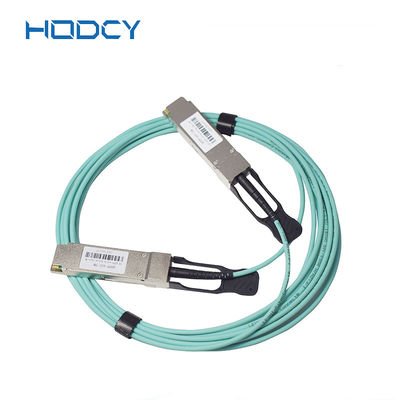

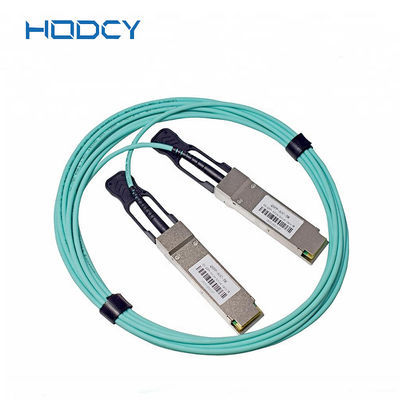

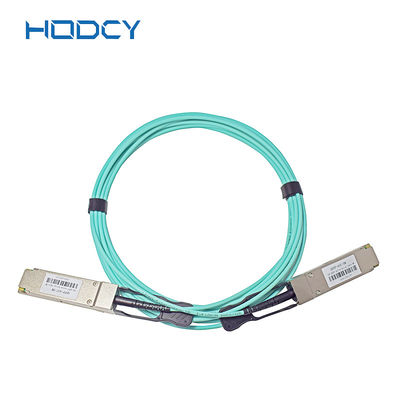

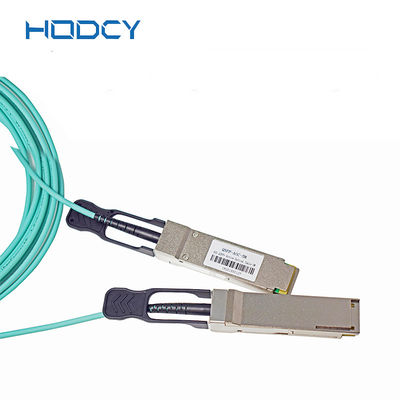

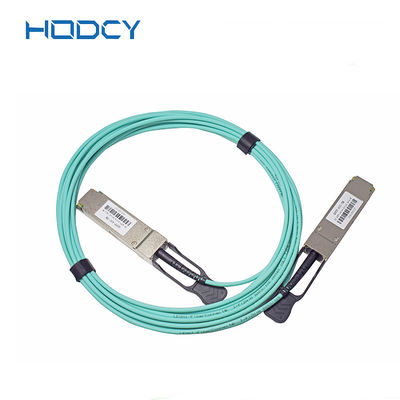

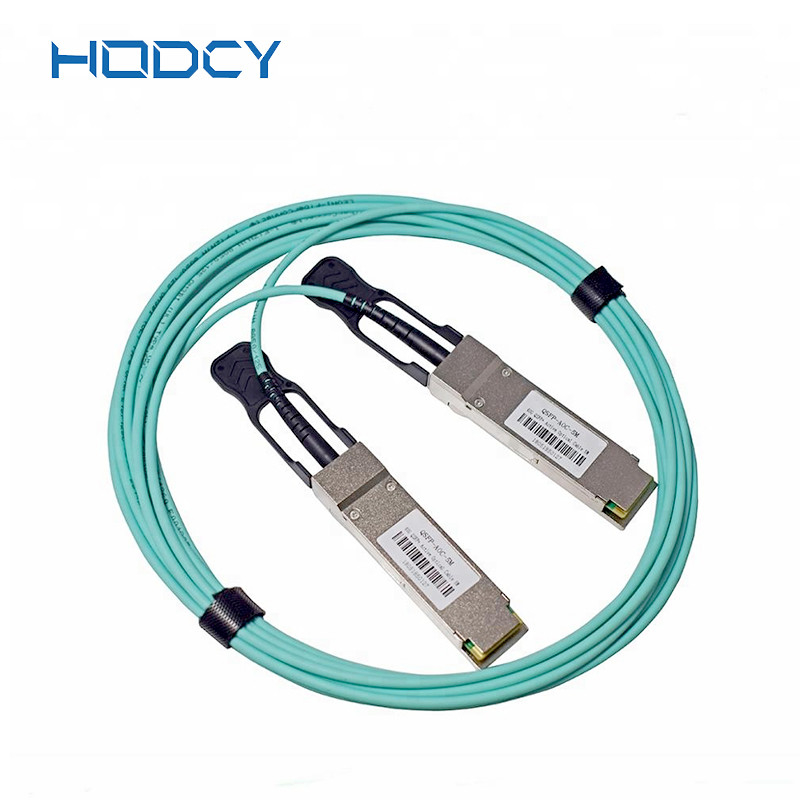

40G QSFP+ to QSFP+ AOC Cable

40G QSFP+ to QSFP+ AOC Cable

    • 40G QSFP+ to QSFP+ AOC Cable
    • 40G QSFP+ to QSFP+ AOC Cable
    • 40G QSFP+ to QSFP+ AOC Cable
    • 40G QSFP+ to QSFP+ AOC Cable
    • 40G QSFP+ to QSFP+ AOC Cable
    • 40G QSFP+ to QSFP+ AOC Cable
    • 40G QSFP+ to QSFP+ AOC Cable

    Product Details:

    Place of Origin: CHINA
    Brand Name: HODCY
    Certification: CE ROHS
    Model Number: 40G QSFP+ to QSFP+ AOC Cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 100PCS
    Price: 6.0USD/PCS
    Packaging Details: 1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS
    Delivery Time: 3-5 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 50000 Pieces per Week
    Contact Now
    Detailed Product Description
    Product Name: 40G QSFP+ To QSFP+ AOC Cable Application: 40G QSFP+ SR Module
    Connector: MPO/MTP Fiber Type: OM3 OM4
    Wavelength: 1260 To 1650nm Cable: 0.9/2.0/3.0 Mm
    Storage Temperature: - 45~+85℃ Return Loss: ≥55dB

    Product Features:

    Rollball’s QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. The Olink QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. The Olink QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.





    Four-channel full-duplex active optical cable
    Transmission data rate up to 11.3Gbit/s per channel
    Reliable VCSEL array technology using multimode fiber
    Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
    Low power consumption <1.5W
    3.3V power supply voltage

    Specification:

    MTP/MPO Specifications:

    Type Single Mode Single Mode Multi Mode
    (APC Polish) (UPC Polish) (PC Polish)
    Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
    Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
    Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
    Low Loss Low Loss Low Loss
    ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
    Return Loss ≥60 dB ≥60 dB NA
    Durability ≥500 times ≥500 times ≥500 times
    Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
    Test Wavelength 1310nm 1310nm 1310nm

    Application



    Note: Maximum Bandwidths of Different Multimode Fibers
    OM1 – 62.5/125um – 10GBit up to 33 meters (108 feet)
    OM2 – 50/125um – 10GBit up to 82 meters (270 feet)
    OM3 – 50/125um, Laser Optimized – 10GBit up to 300 meters (984 feet)
    OM4 – 50/125um, Laser Optimized – 10GBit up to 550 meters (1805 feet)



    40G QSFP+ to QSFP+ AOC Cable40G QSFP+ to QSFP+ AOC Cable
