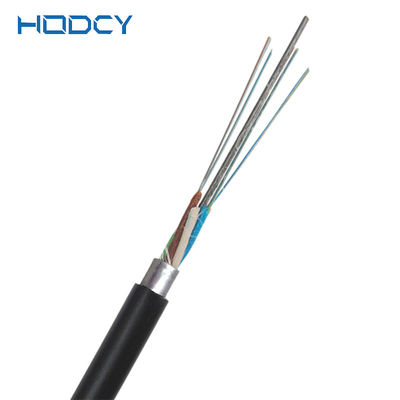

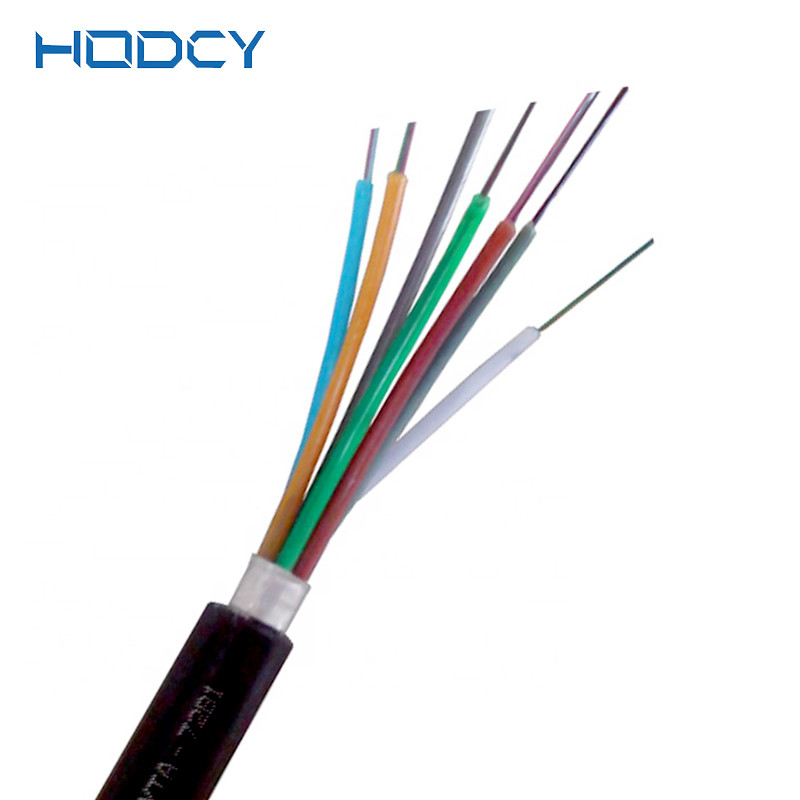

GYTA Outdoor fiber opitcal cable

Description:

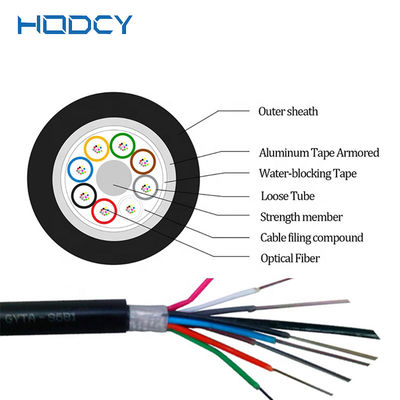

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features:

• GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
• Good mechanical and temperature performance
• High strength looes tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Specially designed compact structure is good at preventing loose tubes from shrinking
• Crush resistance and flexibility
• Aerial Duct laying methods
• PE sheath protects cable from ultraviolet radiation
• The following measures are taken to ensure the cable watertight:

- Steel wire used as the central strength member

- Loose tube filling compound

- 100% cable core filling

- APL moisture barrier

Technical Parameters:
