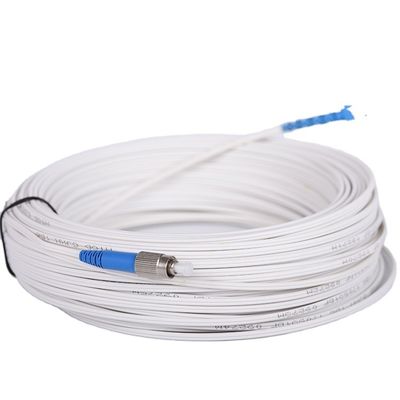

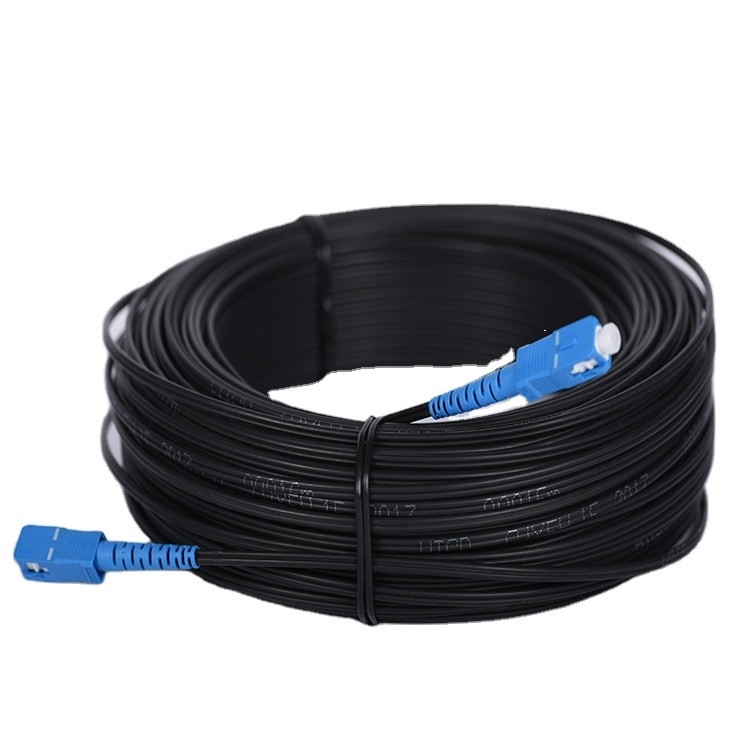

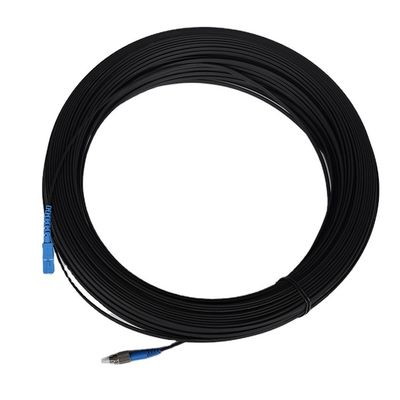

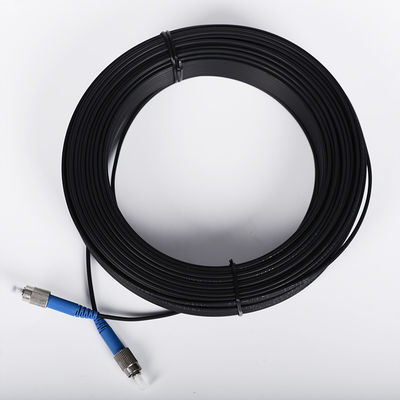

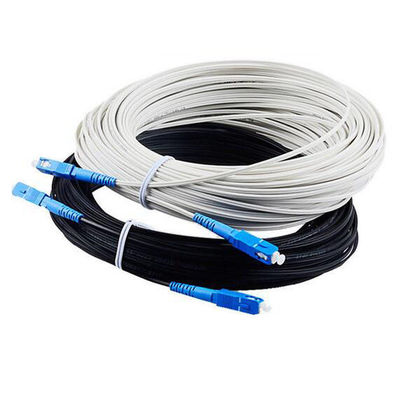

GJYXFCH-1B6-SM SC/UPC 100M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Optic Cable G657A LSZH Ftth Drop Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	hochiry
Certification:	CE ROHS
Model Number:	GJYXFCH-1B6 FTTH-001-SM 100М

Payment & Shipping Terms:

Minimum Order Quantity:	100 Roll
Price:	0.07USD/Meter
Packaging Details:	100M per Roll
Delivery Time:	3-5 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Kilometer/Kilometers per Month

Contact Now

Detailed Product Description

Model Number:	GJYXFCH Drop Fiber Optic Cable	Fiber Type:	G652D ,G657A ,G657A2
Cable Structure::	Self-support Tight Buffer	Strength Member:	FRP (Fiber Glass Reinforced Plastic)
Installation Tensile::	1200N	Material Of Jacket::	UV And Flame Resistant LSZH
Fiber Amount:	1 Fiber

GJYXFCH FTTH Drop Cable Self Supported Tube LSZH Jacket Cable optics fibers G652D G657A1 G657A2 drop cable

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.

· Suitable for limited space field of the branch, indoor series;
· Laid to facilitate construction operations;part and the cable;
· Jacket use low smoke, halogen-free flame-retardant materials;
· Prevent lightning and strong electric environment;
· FRP strengthen the component materials.

Cable construction details

No.of fiber	1F-4F
Gross weight	8.5kg/km
SM fiber	Fiber type	9/125	MFD	8.6～9.8um
	Cladding diameter	125±0.7um	Cladding non-circularity	≤0.7%
	Coating diameter	245±5um	Fiber color	standard spectrum
Strength member	Material	FRP / Steel wire	Color	white
	Diameter	0.5mm	Qty	2
Out sheath	Material	LSZH	Color	White / Black
	Diameter	2.0 (±0.1) *3.0mm (±0.1)	Thickness	≧0.5mm

Cable mechanical and environment characteristics

Tensile strength	Long term(N)	40N
	Short term(N)	80N
Crush load	Long term(N)	500N/100mm
	Short term(N)	1000N/100mm
Bending radius	Dynamic	20D
	Static	10D
Temperature	-20℃～+70℃

Fiber characteristics

Fiber style	Unit	SM G652D	MM 50/125	OM3-150
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Cladding diameter	um	125±1	125±1	125±1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±7	242±7	242±7

GJYXFCH-1B6-SM SC/UPC 100M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Optic Cable G657A LSZH Ftth Drop Cable
