GJFJV OM2 OM3 OM4 Multimode Distribution Tight Buffer Indoor Optical Cable

GJFJV OM2 OM3 OM4 Multimode Distribution Tight Buffer Indoor Optical Cable

    • GJFJV OM2 OM3 OM4 Multimode Distribution Tight Buffer Indoor Optical Cable
    • GJFJV OM2 OM3 OM4 Multimode Distribution Tight Buffer Indoor Optical Cable
    • GJFJV OM2 OM3 OM4 Multimode Distribution Tight Buffer Indoor Optical Cable
    • GJFJV OM2 OM3 OM4 Multimode Distribution Tight Buffer Indoor Optical Cable
    • GJFJV OM2 OM3 OM4 Multimode Distribution Tight Buffer Indoor Optical Cable

    Product Details:

    Place of Origin: CHINA
    Brand Name: hochiry
    Certification: CE ROHS
    Model Number: GJFJV

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 meter

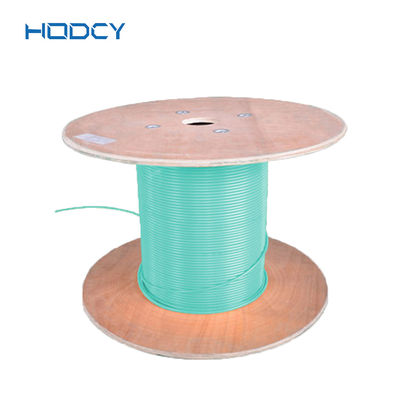

    Packaging Details: 2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler
    Delivery Time: 1-3 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3000KM/day
    Contact Now
    Detailed Product Description
    Model Number: GJFJV Indoor Optical Cable Product Name: Tight Buffer Indoor Optical Cable
    Jacket Color: Aqua/orange Fiber Type: OM1 OM2 OM3 OM4

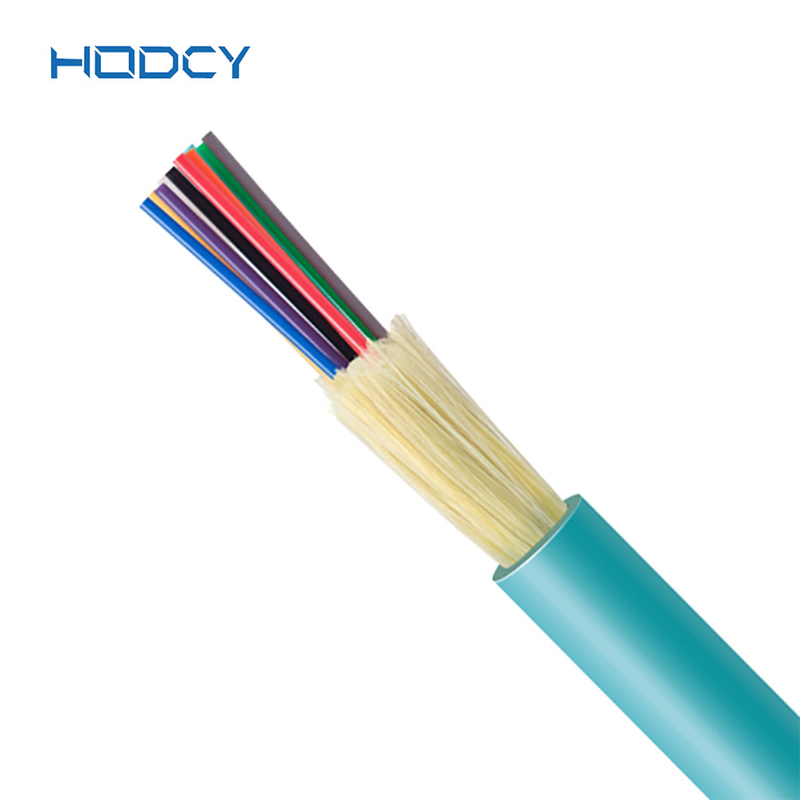

    GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant)
    The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipment and accurately designed tools ensure a good performance of the product.



    Good mechanical and environmental characteristics
    · Flame retardant characteristics meet the requirements of relevant standards
    ·The mechanical characteristics of jacked meet the requirements of relevant standards
    · Soft,flexible,easy to lay and splice,and with big capacity data transmission
    · Meet various requirements of market and clients.

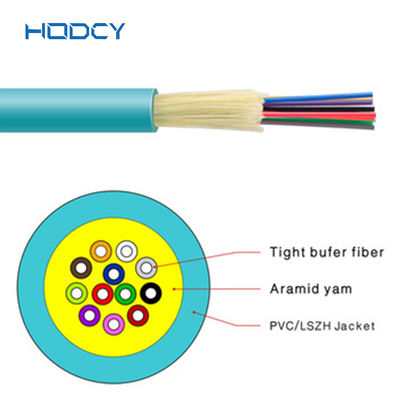

    Cable construction details

    Cable Mechanical characteristic

    Items Cable diameter Weight
    2 cores 4.0mm 22.00kg/km
    4 cores 4.0mm 22.00kg/km
    6 cores 4.0mm 23.00kg/km
    8 cores 5.0mm 27.00kg/km
    10 cores 5.5mm 30.00kg/km
    12 cores 6.0mm 35.00kg/km
    Storage temperature(℃) -20+60
    Min Bending Radius(mm) Long term 10D
    Min Bending
    Radius(mm)    		 Short term 20D
    Min allowable
    Tensile Strength(N)    		 Long term 200
    Min allowable
    Tensile Strength(N)    		 Short term 600
    Crush Load (N/100mm) Long term 200
    Crush Load (N/100mm) short term 1000



    Fiber characteristic

    Fiber style Unit SM
    G652    		 SM
    G652D    		 MM
    50/125    		 MM
    62.5/125    		 MM
    OM3-300
    condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
    attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
    0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
    Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
    1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
    Bandwith 850nm MHZ.KM ---- ---- ≧400 ≧160 Bandwith
    1300nm MHZ.KM ---- ---- ≧800 ≧500 　
    Zero dispersion wavelength nm 1300-1324 ≧1302,
    ≤1322    		 ---- ---- ≧ 1295,
    ≤1320
    Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
    PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
    PMD Design Link Value Ps(nm2*k
    m)    		 ≤0.12 ≤0.08 ---- ---- ----
    Fibre cutoff wavelength λc nm ≧ 1180,
    ≤1330    		 ≧1180,
    ≤1330    		 ---- ---- ----
    Cable sutoff
    wavelength λcc    		 nm ≤1260 ≤1260 ---- ---- ----
    MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
    1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
    Numerical
    Aperture(NA)    		 　 ---- ---- 0.200+/
    -0.015    		 0.275+/-0.
    015    		 0.200+/-0
    .015
    Step(mean of bidirectional
    measurement)    		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
    Irregularities over fiber
    length and point    		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

    Dicontinuity
    Difference backscatter
    coefficient    		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
    Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
    Core dimater um 　 　 50+/-1.0 62.5+/-2.5 50+/-1.0
    Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
    Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
    Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
    Coating/chaffinch
    concentrically error    		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
    Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
    Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
    Curl(radius) um ≤4 ≤4 ---- ---- ----
