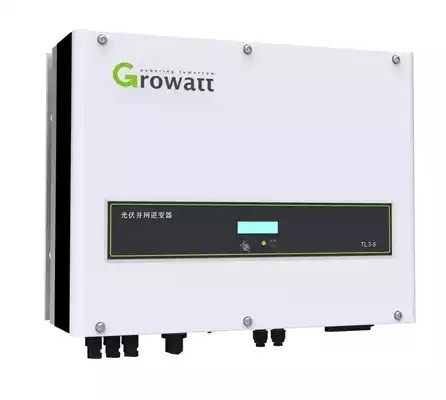

Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

    • Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
    • Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
    • Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
    • Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

    Product Details:

    Place of Origin: China
    Brand Name: Growatt
    Certification: CE/RoHS/UN38.3/MSDS
    Model Number: SW10000TL3-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Packaging Details: Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000 Piece per week
    Contact Now
    Detailed Product Description
    Product Name: Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S Battery Type: LiFePO4
    Cycle Life: 3000cycle/6000cycle Protection: Built-in Smart BMS
    Capacity: 50Ah/80ah/100Ah/200Ah Application: Solar, Wind, UPS Energy Storage
    Communication Port: RS232, RS485, CAN



    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
    Model
    8000TL3-S
    9000TL3-S
    10000TL3-S
    11000TL3-S5500M
    Max. recommended PV power
    (for module STC)
    9600W
    10800W
    12000W
    13200W
    Max. DC voltage
    1000V
    1000V
    1000V
    1000V
    PV voltage range
    160V-1000V
    160V-1000V
    160V-1000V
    160V-1000V
    Nominal voltage
    600V
    600V
    600V
    600V
    MPP voltage range at Full Power
    360V-850V
    400V-850V
    450V-850V
    450V-850V
    Max. input current
    11.5A/11.5A
    11.5A/11.5A
    13A/13A
    13A/13A
    Number of independent MPP trackers/strings per MPP tracker
    2/1
    2/1
    2/1
    2/1
    Output (AC)
    Rated AC output power
    8KW
    9KW
    10Kw
    11Kw
    Max. AC apparent power
    8.8kVA
    9.9kVA
    11kVA
    12.1kVA
    Max. output current
    13.3A
    15A
    16.7A
    18.3A
    AC nominal voltage; range
    230V400V: 320-478V
    230V400V: 320-478V
    230V400V: 320-478V
    230V400V: 320-478V
    AC grid frequency; range
    50Hz,60Hz / 5Hz
    50Hz,60Hz / 5Hz
    50Hz,60Hz / 5Hz
    50Hz,60Hz / 5Hz
    Displacement power factor,
    configurable
    0.8leading…
    0.8lagging
    0.8leading…
    0.8lagging
    0.8leading…
    0.8lagging
    0.8leading…
    0.8lagging
    THDi
    <3%
    <3%
    <3%
    <3%
    AC grid connection type
    3W+N+PE
    3W+N+PE
    3W+N+PE
    3W+N+PE
    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

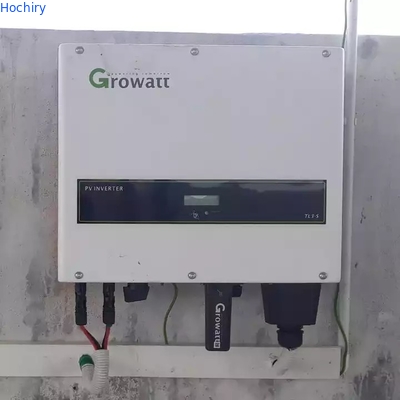

    Project Case
    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

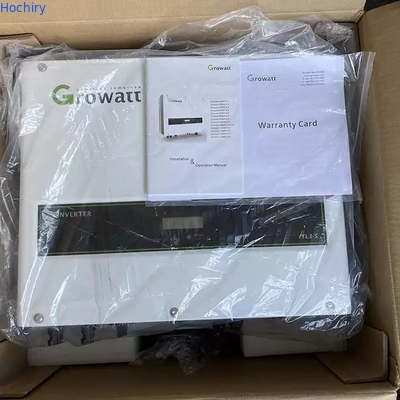

    Product Packaging
    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
    Our Factory
    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
    Certifications
    Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
