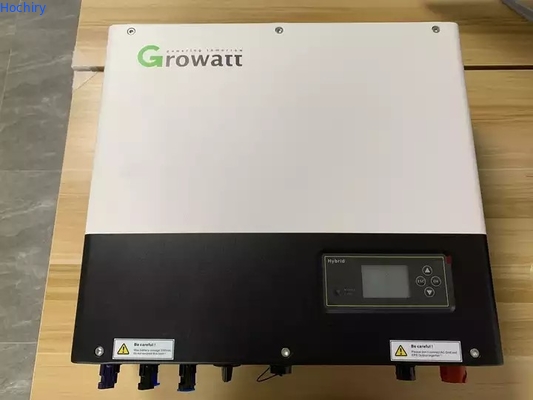

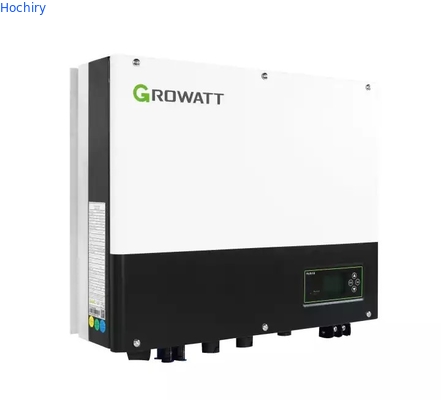

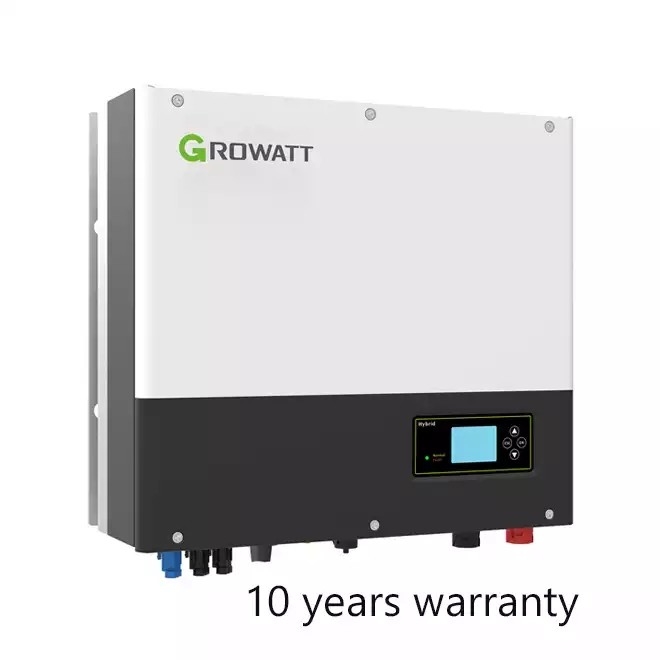

Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw

Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw

    • Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    • Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    • Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    • Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw

    Product Details:

    Place of Origin: China
    Brand Name: Hochiry
    Certification: CE/RoHS/UN38.3/MSDS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Packaging Details: Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000 Piece per week
    Contact Now
    Detailed Product Description
    Product Name: Lithium Battery Lifepo4 Battery Battery Type: LiFePO4
    Cycle Life: 3000cycle/6000cycle Protection: Built-in Smart BMS
    Capacity: 50Ah/80ah/100Ah/200Ah Application: Solar, Wind, UPS Energy Storage
    Communication Port: RS232, RS485, CAN

    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Products Description
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw

    GROWATT HYBRID INVERTER
    Model: SPH 4000-1000TL3 BH-UP
    4-10KW HYBRID INVERTER THREE PHASE 230/400V GRID VOLTAGE
    100-550V HIGH VOLTAGE BATTERY




    IN STOCK NOW
    FOR IMMEDIATE DELIVERY WITHIN 3 DAYS
    CONTACT US FOR SHIPPING COST AND MORE DETAILS
    Product Paramenters

    GROWATT SPH 4000- SPH 10000TL3 BH-UP
    Specification
    SPH4000TL3 BH-UP
    SPH5000TL3 BH-UP
    SPH6000TL3 BH-UP
    SPH7000TL3 BH-UP
    SPH8000TL3 BH-UP
    SPH10000TL3 BH-UP
    Input data (PV)

    Max. recommended PV power
    (for module STC)
    6000W
    7500W
    9000W
    10500W
    12000W
    15000W
    Max. DC voltage
    1000V





    Start voltage
    120V
    MPPT voltage range
    120V-1000V/600V
    No. of MPP trackers
    2
    No. of PV strings per MPP tracke
    1
    Max. input current per MPP tracker
    13.5A
    Max. short-circuit current per MPP tracker
    16.9A
    Output data (AC)






    Rated AC output power
    4000W
    5000W
    6000W
    7000W
    8000W
    10000W
    Max. AC apparent power
    4000VA
    5000VA
    6000VA
    7000VA
    8000VA
    10000VA
    Nominal AC voltage (range*)
    230V/400V (310~476V)
    AC grid frequency (range)
    50/60 Hz (45-55Hz/55-65 Hz)
    Max. output current
    6.1A
    7.6A
    9.1A
    10.6A
    12.1A
    15.2A
    Adjustable power factor
    0.8leading…0.8lagging
    THDi
    <3%
    AC grid connection type
    3W+N+PE
    Efficiency

    Max.efficiency
    97.6%
    97.8%
    98.0%
    98.2%
    98.2%
    98.2%
    European efficiency
    97.0%
    97.2%
    97.3%
    97.4%
    97.4%
    97.5%
    Protection devices

    DC reverse polarity protection
    Yes
    DC switch
    Yes
    AC/DC surge protection
    TypeII/Type II
    Insulation resistance monitoring
    Yes
    AC short-circuit protection
    Yes
    Ground fault monitoring
    Yes
    Grid monitoring
    Yes
    Anti-islanding protection
    Yes
    Residual-current monitoring unit
    Yes
    String monitoring
    Optional
    AFCI protection
    Optional
    General data

    Dimensions (W / H / D)
    505/453/198mm
    Weight
    30kg
    Operating temperature range
    –25 °C ... +60 °C
    Noise emission (typical)
    ≤40 dB(A)
    Self-Consumption (night)
    <1W
    Topology
    Transformerless
    Cooling
    Natural convection
    Protection degree
    IP65
    Relative humidity
    0~100%
    Altitude
    3000m
    DC connection
    H4 / MC4 (Optional )
    AC connection
    Cable gland+OT terminal
    Display
    OLED+LED/WIFI+APP
    Interfaces: RS485 / USB /
    WiFi/ GPRS / RF/ LAN
    Yes/Yes /Optional/Optional/Optional/Optional
    Warranty: 5 years / 10 years
    Yes / Optional
    Why choose it
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Customer Photos

    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Why Choose Us
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
    Growatt SPH 1000TL Hybrid Solar Inverter Hybrid Growatt Inverter 10kw
