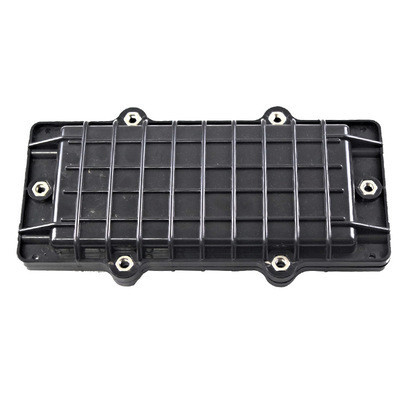

HDS20-HM03A Horizontal mini Type 24 Cores Splice Enclosure Fiber Optic Joint Enclosure

HDS20-HM03A Horizontal Type Fiber Optic Splice Closure 24 Cores Splice Enclosure Fiber Optic Joint Enclosure (FOSC)

Product Description

Fiber Optic Splice Closure (FOSC) is a member of closure series, the product adopts fully-mechanical sealing structure, only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 13mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection.

Key Features

• 1. It could be installed 36pcs SC/PC Pigtails of 1.5
• 2. It applies to PLC splitter with Max ratio 1:12 or 2*2:24
• 3. This model has four small round ports and one large round port
• 4. The Max quantity of SC adaptor is 48pcs. (Other types of adaptor could be customized)
• 5. The sealing component is made from vulcanized rubber
• 6. The sealing method adopts screw pressure, sealing performance is excellent, convenient to re-open, especially suitable for optical splitter used
• 7. Adopt modified PP material with high strength and anti-corrosion to make the closure have a longer lifetime and excellent sealing performance
• 8. There are various sealing accessories of soft cable to be chosen

Specifications

• Applies to PLC splitter
• Fully-mechanical sealing and heat shrink sealing structure oppotional.
• IP safety rate is IP68
• The sealing method adopts screw pressure
• This model is suitable for different methods of branch connection, including branching of uncut cable
• It could be used for aerial, pole-mounting, wall-mounting and underground application
• The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment
• Number of fibers: according to your requirement
• Length: 300 mm, Diameter: 6~13 mm
• Weight:2.5kg
Note: This fiber splice closure belongs to fiber optic splitter type and it does not come with any adapters and fiber splitters. If any needs on fiber adapters and fiber splitters, you need to purchase it separately.

Main Technical Parameters

Detail Image

How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ:
1. For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 30pcs.
3. OEM MOQ is 300pcs/model, Special cases can be negotiated.

Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.

Lead Time:
1. Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.

OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!

Warranty Policy:
We provide 3-5 years warranty for Fiber optical closure after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.

Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
