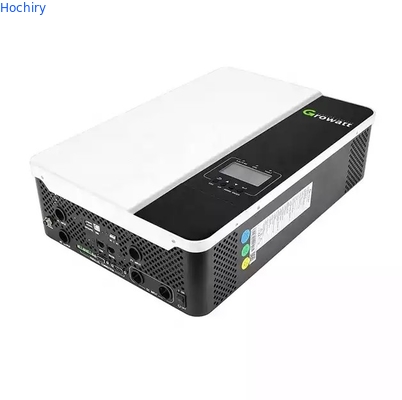

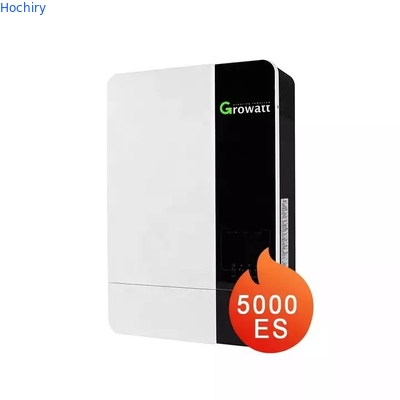

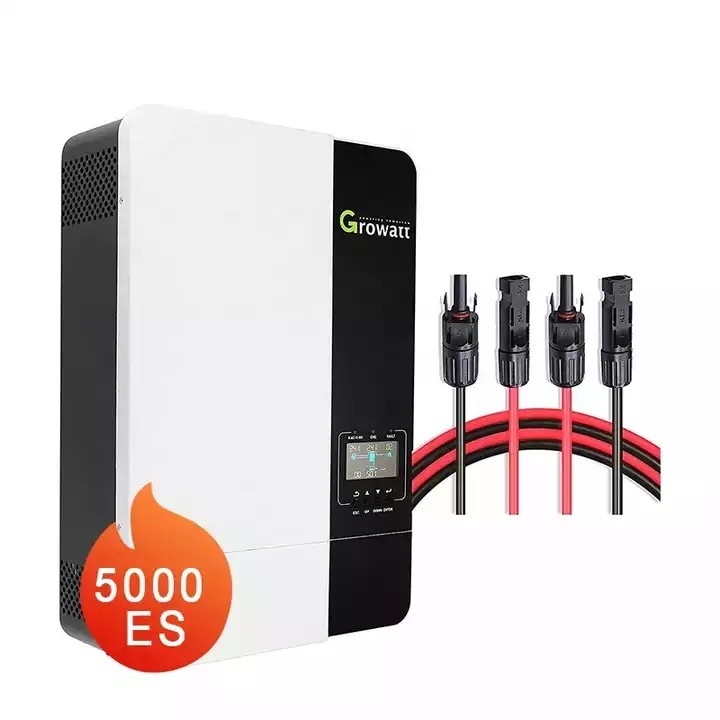

Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w

Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w

    • Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    • Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    • Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    • Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w

    Product Details:

    Place of Origin: China
    Brand Name: Hochiry
    Certification: CE/RoHS/UN38.3/MSDS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Packaging Details: Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000 Piece per week
    Contact Now
    Detailed Product Description
    Product Name: Growatt 5000ES SPF 5000 ES Inverter Off Grid 3500w 5000w Battery Type: LiFePO4
    Cycle Life: 3000cycle/6000cycle Protection: Built-in Smart BMS
    Capacity: 50Ah/80ah/100Ah/200Ah Application: Solar, Wind, UPS Energy Storage
    Communication Port: RS232, RS485, CAN

    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Product Description
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Specification
    Growatt SPF 3500~5000 ES
    Model
    SPF 3500 ES
    SPF 5000 ES
    Battery Voltage
    48VDC
    Battery Type
    Lithium/Lead-acid
    INVERTER OUTPUT
    Rated Power
    3500VA/ 3500W
    5000VA/ 5000W
    Parallel Capability
    Yes, 6 units maximum
    AC Voltage Regulation
    (Battery Mode)
    230VAC ± 5% @ 50/60Hz
    Surge Power
    7000VA
    10000VA
    Efficiency (Peak)
    93%
    Waveform
    Pure sine wave
    Transfer Time
    10ms typical, 20ms Max
    SOLAR CHARGER
    Maximum PV Array Power
    4500W
    6000W
    MPPT Range @ Operating Voltage
    120VDC ~ 430VDC
    Number of Independent MPP Trackers/
    Strings Per MPP Tracker
    1/1
    Maximum PV Array Open
    Circuit Voltage
    450VDC
    Maximum Solar Charge Current
    80A
    100A
    AC CHARGER
    Charge Current
    60A
    80A
    AC Input Voltage
    230 VAC
    Selectable Voltage Range
    170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
    Frequency Range
    50Hz/60Hz (Auto sensing)
    PHYSICAL
    Protection Degree
    IP20
    Dimension (W/H/D)
    330/485/135mm
    330/485/135mm
    Net Weight
    11.5kgs
    12kgs
    OPERATING ENVIRONMENT
    Humidity
    5% to 95% Relative Humidity(Non-condensing)
    Altitude
    <2000m
    Operating Temperature
    0°C - 55°C
    Storage Temperature
    -15°C - 60°C
    Detail photos
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Feedback about our product
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Why choose it
    Key Fratures of Growatt SPF 3500ES and SPF 5000ES:
    1. Work with or without battery, both functional
    2. Max parallel up to 6 pieces
    3. WIFI monitoring on Phone/PC
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
    Growatt 5000ES SPF 5000 ES inverter off grid 3500w 5000w
