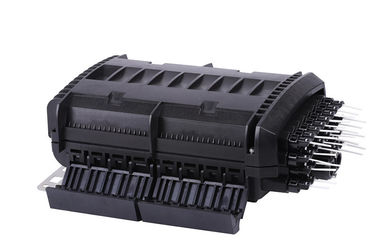

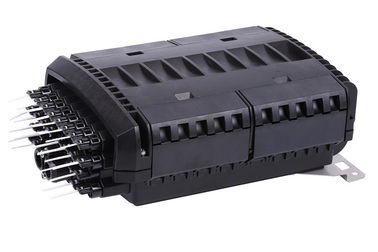

HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box

HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box

    • HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box
    • HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box
    • HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box
    • HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box
    • HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box

    Product Details:

    Place of Origin: CHINA
    Brand Name: HODCY
    Certification: FCC.CE,ROHS
    Model Number: HDS-303

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: USD/6.5-20.5/PCS
    Packaging Details: 56*37*62CM 23.4KG/12PCS
    Supply Ability: 10000PCS/ Week
    Contact Now
    Detailed Product Description
    Type: Fiber Access NAP Terminal Box Mountable: Outdoor/Indoor Wall Mountable
    Material: PP /PC Size(mm): 385*245*155
    Feature: IP55/65 Outdoor Waterproof Application: FTTH FTTB FTTX Network
    Max Capacity: 96 Cores

    HDS-303 96 Cores Fiber Optic Termination Box Fiber Access NAP Terminal Box


    Features:

    ● Water-proof design with IP-65 Protection level.

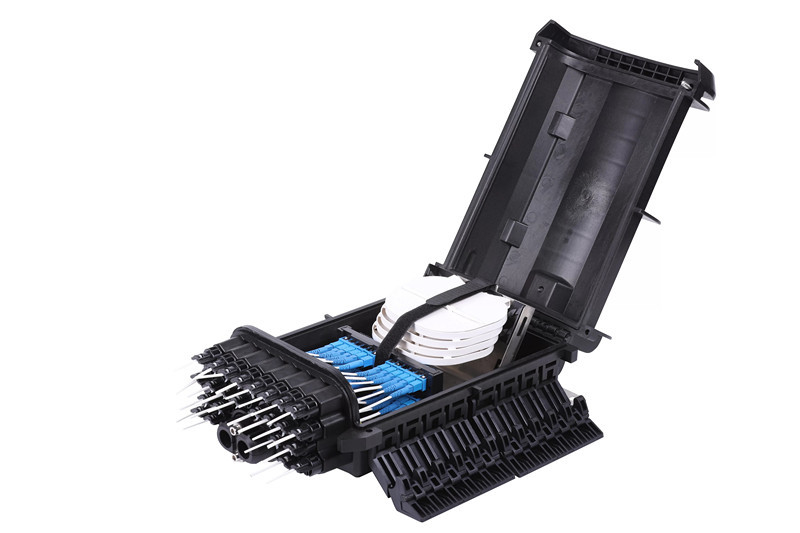

    ● Integrated with flap-up splice cassette and adapter holder.
    ● Maximum 12F splice capacity,stainless anti-rust bolts and nuts.
    ● Easy for maintainance and expansion,neat cabling.
    ● Fiber bend radius control more than 40mm.
    ● 180 degree access with buckled lock structure.
    ● 2pcs of 1*8 PLC splitter can be installed

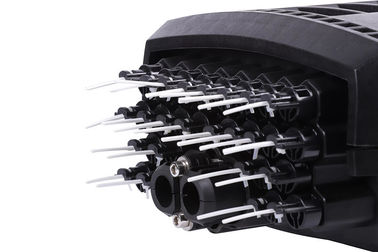

    ● 16pcs of mechanical ports for 3-7mm drop cable.
    ● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)

    Application:

    widely used in FTTH access network.
    Telecommunication Networks
    CATV Networks
    Data communications Networks
    Local Area Networks
    wall-mounted &pole-mounted& Aerial-hanging installation
    Suitable for 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable



    Specifications:



    Product name Specification Unit Quantity Remark
    Box bottom   PCS 1
    Box cover   PCS 1
    Cable holder   SET 1 Stainless steel
    Installation holder   PCS 1 Stainless steel
    Splice tray panel   SET 1
    Adapter panel   SET 1
    Sealing part for drop cable   PCS 24 The color is same as box body’s
    Sealing part for inlet cable port   SET 1
    Sealing part for box body   PCS 1 The color is same as box body’s
    Buckle   PCS 4 The color is same as box body’s
    Lock   SET 1
    Splice tray 12cores PCS 4
    Adapter   PCS 24 Can be optional as customer’s request
    Pigtail   PCS 24 Can be optional as customer’s request







    HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal BoxHDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal BoxHDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal BoxHDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal BoxHDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box
