HODAS Main in Portable EV Charger, DC / AC fast EV charging Sations
HODAS Main in Portable EV Charger, DC / AC fast EV charging Sations
 |
| Place of Origin: | CHINA |
| Brand Name: | Hochiry |
| Certification: | TUV |
| Model Number: | HDS- DC-480KW |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Delivery Time: | 20-25 work days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Products Name: | Fast Electric Car EV Charging Stations | Plug Type: | SAE J1772/IEC 62196 |
|---|---|---|---|
| Connection: | Type 1/Type 2 | Payment Method: | RFID/APP/VISA/MASTER |
| Charging Port:: | 3 Ports, 2 Ports, 1port, 4 Ports, Type C | Input Voltage Range:: | 400VAC±15%,480VAC±15% 3P+N+PE |
| Application: | Home Veichles Charging Stations | Power Plug Type: | Schuko/Nema/UK Plug / Au Plug/ CEE |
| Charging Power: | 480KW |
Feature:
1.Speed charging with up to 4800 Km/h!
2.The Hochiry-PS-480KW quick-charging station was developed for electric vehicles with CHAdeMO or CCS Combo DC charging sockets and is designed for commercial use.
3.It is compatible with all popular industrial sockets and can be used with CEE125 plug sockets.
4.This charger is internet connected via OCPP client and server.
5.RFID card,Paypal,credit card payment systems supported (need Wi-fi or 4G).
6.With 15 inch touching display screen panel.
Brief Introduction

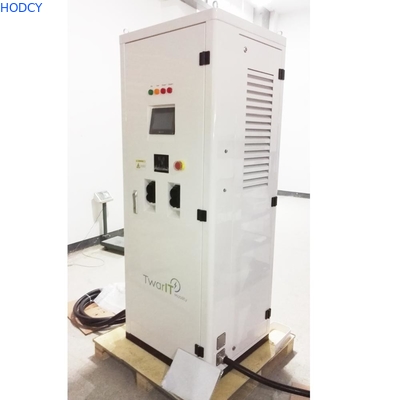

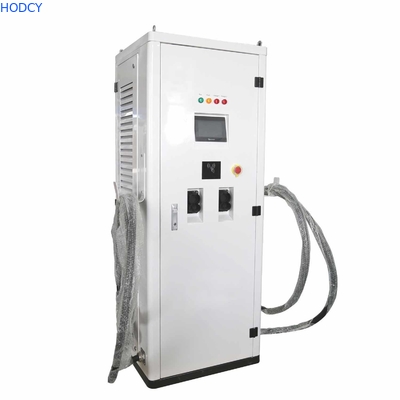

This CHAdeMo, CCS Combo2 and AC Type2 Charger is an AC/DC three-gun integrated type, with a maximum AC output of 43kW and a DC maximum output of 360kW. Three charging ports CCS, CHAdeMO and AC are equipped to provide users with multiple charging options. The charger is for indoor/outdoor placement. The appearance of the charger is beautiful. It supports credit card, APP and other payment methods, and can be started and stopped remotely. It is suitable for charging electric vehicles in charging stations and bustling areas. The charger's protocol and man-machine function must meet the relevant requirements of IEC standards IEC 61851-1 and IEC 62196-24
| Model | 480kW Multi-Standards DC quick charger | |
|
AC Input |
Input Rating | 400VAC±15%,480VAC±15% |
| AC Input Connection | 3P+N+PE (Wye connection) | |
| Max. Input Power | AC+DC serve at the same time:43KVA+500KVA=543KVA | |
| Frequency | 50/60 Hz | |
| Power Factor | >0.99 APFC | |
| Efficiency | 95% | |
| DC Output | Output Voltage Range | 50~1000Vdc |
| Max.Output Power | 480kW | |
| Voltage Accuracy | ± 1% | |
| Current Accuracy | ± 1% | |
|
User Interface |
TFT-LCD Touch Panel | 15' T FT-LCD touchable screen(Android or Win CE) |
| Emergency Stop Control | Press emergency stop button isolator) between input and ouput Manual release switch | |
| User Authentication | RFID/APP/VISA/MASTER | |
| Display information | Charging process and status / Alarm and warning messages | |
|
Environment |
External | 3/4G,WiFi and Ethernet |
| Internal | CAN Bus/RS485/RS232 | |
| LxWxH | 1417X1029X2099mm | |
| Protocol and standard | CHAdeMO 2.0 / DIN 70121/ISO15118/IEC61851-23JEC61851-24 | |
| Electrical Isolation | Isolation between input and output | |
| Cooling | Forced Air | |
| Input Protection | OVP,OCP,OPP,OTP,UVP,residual current detection,surge protect cabinet-open detection(rear door | |
| Output Protection | short circuit protection,OCP,OVP,LVP,OTP,residual current detection | |
| Noise | <55dB | |
| Protection | IP54/IK10 | |
| Net weight | 580 kg | |
