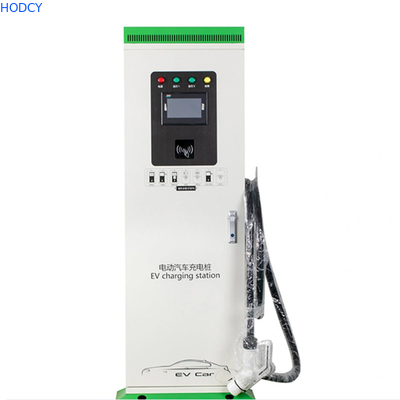

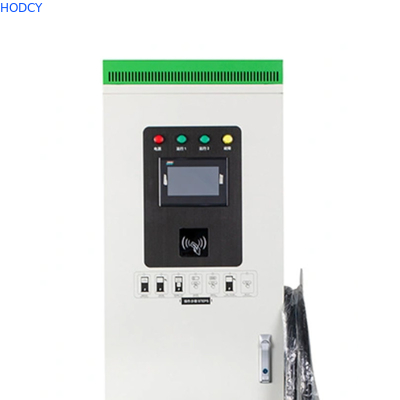

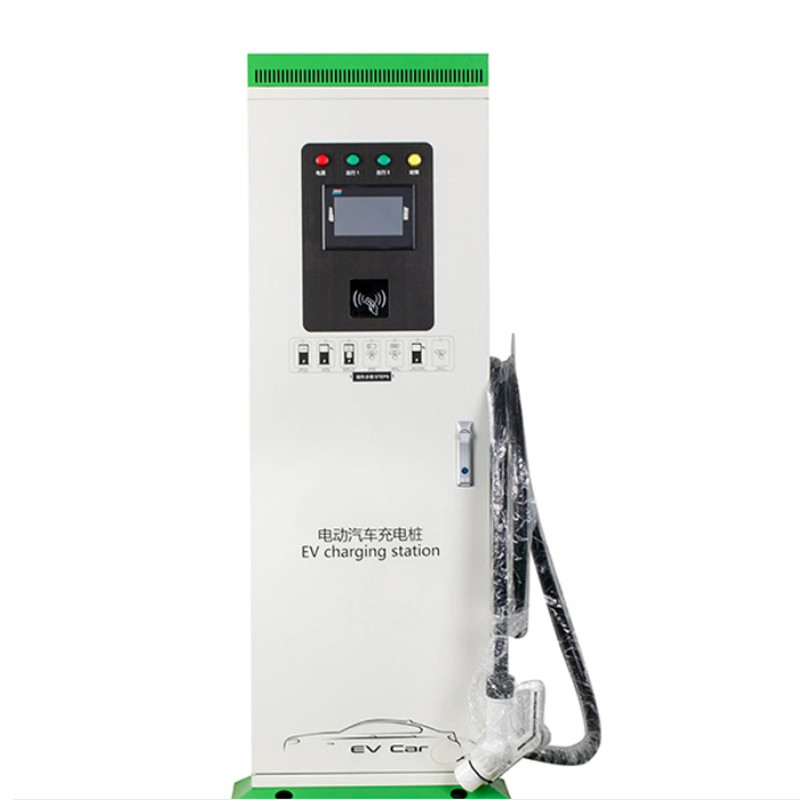

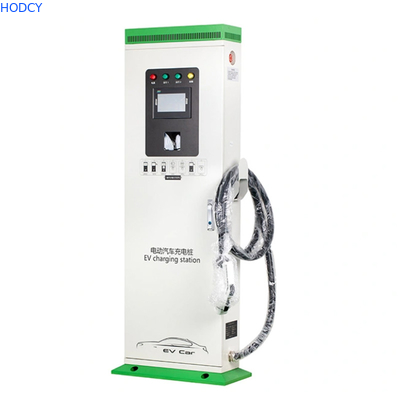

360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard

360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard

    • 360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard
    • 360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard
    • 360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard
    • 360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hochiry
    Certification: TUV
    Model Number: HDS- AC-E22-7KW
    Contact Now
    Detailed Product Description
    Products Name: Fast Electric Car EV Charging Stations Plug Type: SAE J1772/IEC 62196
    Connection: Type 1/Type 2 Payment Method: Payment Method
    Charging Port:: 3 Ports, 2 Ports, 1port, 4 Ports, Type C Input Voltage Range:: 230V±15%, Signal-phase
    Application: Home Veichles Charging Stations Power Plug Type: Schuko/Nema/UK Plug / Au Plug/ CEE
    Charging Power: Schuko/Nema/UK Plug / Au Plug/ CEE

    360KW DC Split Type European Standard EV Chargers Fast Charging Stations

    Main features:

    Adopting a nuclear power-grade high-power power module platform, the safety and reliability are higher;
    The new high-efficiency three-phase PFC circuit topology is adopted, the power factor is greater than 0.99, and the harmonic distortion rate is ≤5%.
    The high-frequency switching power supply module adopts full-bridge phase-shift soft-switching technology, and the execution efficiency is high.
    The advanced digital current sharing technology effectively improves the current sharing accuracy and anti-interference; the first module sleep technology and the wheeling technology ensure the high-efficiency operation of the system;
    Intelligent charging process control and perfect charging process monitoring and protection, fool-like operation;
    A variety of charging methods such as timed charging, quantitative charging, fixed amount charging and automatic charging are available;
    Real-time display of information such as the amount of charge, charging time, current electricity price, charging price, and
    operating status;
    The RS-485 networking communication interface can be reserved, and the optional GPRS networking mode can be provided;
    Module hot swap technology makes maintenance more convenient;
    Working environment temperature -20+50 °C
    Scope of application
    Integrated DC charging pile is suitable for urban public charging stations (bus, taxi, official car, sanitation car, logistics
    car, etc.) city public charging station (private car, commuter car, bus) cityVarious parking lots in residential areas, shopping plazas, power business places,etc.; intercity highway charging stations, etc.

    Product number   KYCP-DC-45KW KYCP-DC-60KW KYCP-DC-80KW
    Detailed specification rated power 45KW 60KW 80KW
    Charging equipment User Interface 7 inch LCD color display touch screen
    installation Floor-standing/Down and down
    Routing mode device size 635*423*1600(mm)
    Input voltage AC380V±20%
    Input frequency 45~65Hz
    The output voltage 200-750VDC
    Single gun output current range 200V-500V 200V-500V 200V-500V
    The output voltage 0-90A 0-120A 0-160A
    Single gun output current range 200V-750V 200V-750V 200V-750V
    The output voltage 0-60A 0-80A 0-107A
    Charging equipment Single gun output current range 0-112A 0-150A /
    Cable length 5m
    Electrical index Measurement accuracy Level 0.5
    Current limit protection value ≥110%
    Voltage regulation accuracy ≤±0.5%
    Steady flow accuracy ≤±1%
    Ripple coefficient ≤±0.5%
    effectiveness ≥94.5%
    Power factor ≥0.99 (50% load or more)
    Harmonic content THD ≤5% (50% load or more)
    feature design HMI 7 inch LCD color display touch screen, LED indicator
    Charging mode Auto full / fixed power / fixed amount / fixed time
    payment method Credit card payment / APP payment / scan code payment
    Communication Interface Ethernet 2/3/4G (optional)
    Safety design Executive standard GBT 20234, GB/T 18487, GB/T 27930, NBT 33008
    security function Charge gun temperature detection,
    overvoltage protection,
    undervoltage protection,
    overload protection,
    short circuit protection, grounding protection,
    over temperature protection,
    low temperature protection,
    insulation monitoring protection,
    polarity reverse connection protection,
    lightning protection,
    emergency stop protection,
    leakage protection
    Environmental indicators Operating temperature -25°C~+50°C
    Working humidity 5%~95% non-condensing cream
    Working elevation <3000m
    Protection level IP54
    cooling method Forced air cooling
    Noise control ≤60dB
    MTBF
    100,000 hours
    360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard
    360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard
