32A Fast EV Charging Station Waterproof Level 2 Charger With RFID Card

Product Details:

Place of Origin:	CHINA
Brand Name:	Hochiry
Certification:	TUV
Model Number:	HDS- AC-E22-7KW

Contact Now

Detailed Product Description

Products Name:	Fast Electric Car EV Charging Stations	Plug Type:	SAE J1772/IEC 62196
Connection:	Type 1/Type 2	Payment Method:	Payment Method
Charging Port::	3 Ports, 2 Ports, 1port, 4 Ports, Type C	Input Voltage Range::	230V±15%, Signal-phase
Application:	Home Veichles Charging Stations	Power Plug Type:	Schuko/Nema/UK Plug / Au Plug/ CEE
Charging Power:	Schuko/Nema/UK Plug / Au Plug/ CEE

32A EV Charger Level 2 Station, Wall Electric Vehicle (EV) Charging Station for All Electric Vehicles

【 High-Speed EV Charging Station 】with Connecting to the Distribution Box, Your Electric Car Will Get a 32amps of Charging Speed.20ft Cable (charger body+ Wall plug cable + car plug cable 25ft)

【 Perfect Charging Solution 】Level 2, 240 Volts, High-Power, 32 Amp, 7.7 Kw EV Charging Station. Indoor/Outdoor Installation, Electric Vehicle (EV) Charging Station Charges up to 6X Faster than a Standard Wall Outlet And Adds Up To 25 Miles Of Range Per Hour, So You Always Have the Range You Need

【 IP66 Waterproof Level 2 Wall Box 】 Everything You Need Is in the Box and the Charging Unit Itself Is All-Weather Compatible/Waterproof. The LCD Display Tells You Exactly How Much And What Speed You'Re Charging At.

【 Smart And Intelligent EV Charger 】 Designed with an Intelligent Chip Which Will Monitor All the Conditions During the Charging Process Including the Voltage, Current, Charging Time and Power Consumed.

【 100% Satisfied 】please download or consult if necessary. Whenever Your EV Chargers Have Any Problem or Anything Simply Not Meets Your Needs, unconditional replacement within 30 days

Our newest, fastest and most advanced Level 2 home charging station, can charge up to 28 miles of range per hour - 6x faster than a standard wall outlet. Its easy installation, cutting-edge technology and intelligent chipset ensure a convenient and smart charging experience.

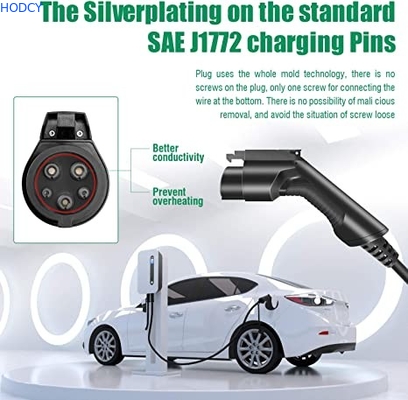

✔ Compatible with all SAE J1772 electric vehicles

✔ Power Output: 32 Amp/7.68kWs

✔ IP Rating: IP66

✔ Fast charging

✔ 20ft cable length

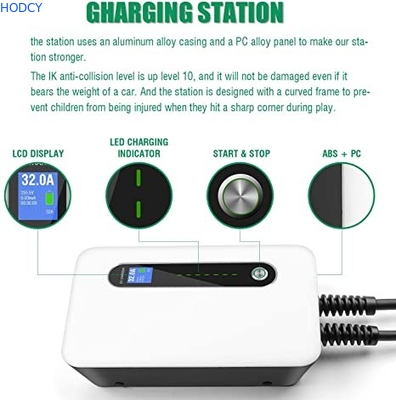

Real-time Charging Data

The 2.76 x 2.05 inch LCD screen provides real-time charging status such as voltage, current and kWhs added.

Safe and Reliable for Your Home and Your EV

Our charging station balances the currents of household appliances to ensure a safe, steady current while charging. It also has an IP rating of IP66 which means it is suitable for outdoor use.

Thoughtful Design

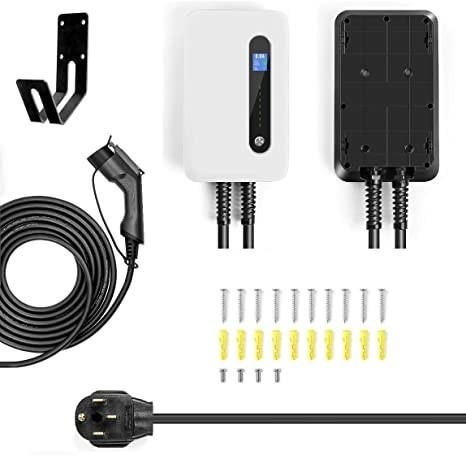

The charging station comes with a 20ft-long cable. The included hook allows you to store the long charging cable neatly.

Intelligent Chipset

The device can detect and repair imbalances automatically to avoid overvoltage and overcurrent. Intelligence is one of the standout features of the charging station.

Easy Installation

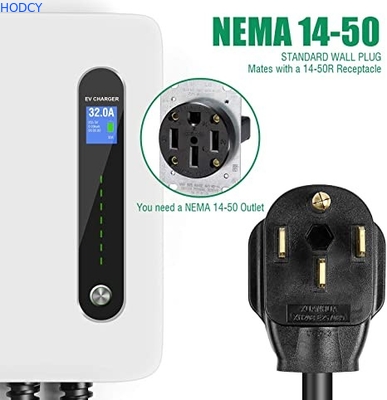

Lectron 240V 32A is ready to plug into any NEMA 14-50 outlet and comes with a 20-feet cable.

It can be installed by any electrician, indoor or outdoor, to charge at 32A, and comes with a 20-foot charging cable and a NEMA 14-50 plug.

Hang the cable on the included hook when not in use.

Product Parameter

Technical Parameter: Support OEM custom power

Model	HDS- AC-E22-7KW	HDS-AC-E22-11KW	HDS-AC-E22-22KW
Electrical index
Power connection	1P+N+PE	3P+N+PE	3P+N+PE
Input/output voltage	230VAC±10%	400VAC±10%	400VAC±10%
Frequency	50HZ±10%
Rated power	7KW	11KW	22KW
Rated current	32A	16A	32A
General Specifications
Charging mode	IEC 61851-1, IEC 61851-22 Charging model-3
AC plugs	IEC 62196-2 AC Type2
Display	4.3”TFT Color touch screen
RFID system	Mifare (Classic, DesFire EV1) or others on request
Communication	GPRS /LAN/Wi-Fi
Communication Protocols	Customizable
Place of installation	Indoor and outdoor
Altitude	6000m(Derating over 3000m )
Protection grade	IP54
Operating Temperature	-20-60℃(Derating over 50℃ )
Storage Temperature	-40-70℃
Humidity	5%~95% without condensation
Cooling mode	Natural cooling
Length of charging gun cable	5m(optional)
Dimensions(WDH)	224100320mm	250120350mm
Weight	8kg	10.5kg		11kg

Compatible Model
BMW	BMW 5 Series 530e, BMW X5 xDrive40e, BMW i3	Subaru	Subaru Crosstrek Hybrid
Ford	Ford C-Max Energi, Ford Fusion Energi, Ford Mustang Mach-E	Fiat	Fiat 500e
Chevrolet	Chevrolet Bolt EV, Chevrolet Volt	Jaguar	Jaguar I-PACE
Hyundai	Hyundai Ioniq Electric, Hyundai Kona Electric	KIA	Kia Niro PHEV
Nissan	Nissan LEAF S, Nissan LEAF S PLUS	Porsche	Porsche Cayenne S E-Hybrid
Honda	Honda Clarity Electric, Honda Clarity PHEV	Volkswagen	Volkswagen e-Golf
Toyota	Toyota Prius Prime	Chrysler	Chrysler Pacifica
Mitsubishi	Mitsubishi Outlander PHEV
