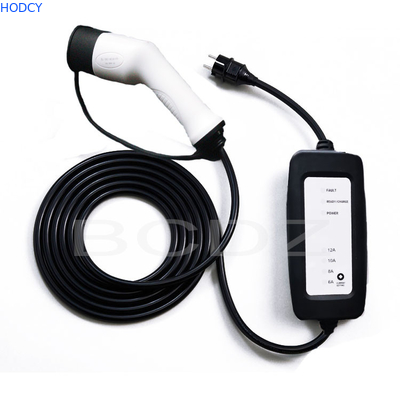

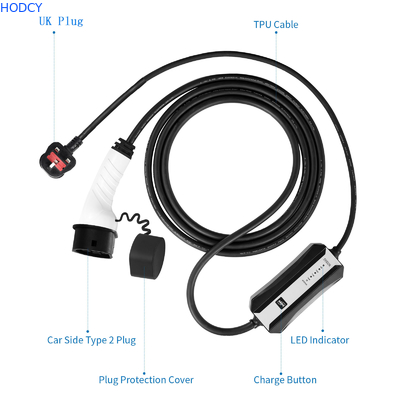

Level 2 Electric Vehicle (EV) Charger 16Amp EVSE Smart Portable Electric Car Charger

Product Details:

Place of Origin:	CHINA
Brand Name:	Hochiry
Certification:	TUV
Model Number:	HDS- AC-E22-7KW

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Packaging Details:	‎19.85 x 15.9 x 3.5 inches /Pcs
Delivery Time:	10-15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

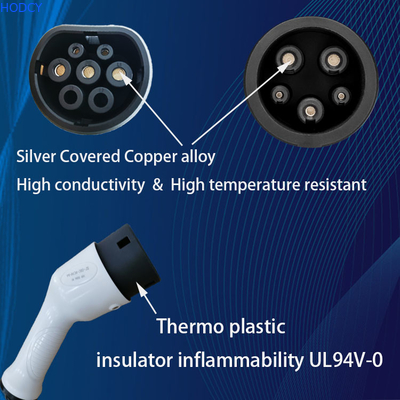

Products Name:	Portable Electric Car Charger	Plug Type:	SAE J1772/IEC 62196
Connection:	Type 1/Type 2	Output Current Range::	0~16A/32A
Input Voltage Range::	230V±15%, Signal-phase	Application:	Home Veichles Charging Stations
Charger Type:	Portable	ChargVoltage Rangeer Type:	100-250V
Required Cable / Breaker:	10 AWG / 20 Amp Double Pole	Available Plug Options:	NEMA5-15 / NEMA6-20

Level 2 Electric Vehicle (EV) Charger (220V / 240Volt, 16Amp) Portable EVSE Smart Electric Car Charger, 30', 40', and 50 Feet Lengths (30 Feet, 14-50P)

[FAST CHARGING] Now HODAS recommends you Level 2 40A, 220-240V EV Charger with NEMA 14-50 plug , which could charge your car 8x faster than other EV chargers you ever used. 25ft (7.5M) cable permits you to park your car 176 square meters around the oulet
[PORTABILITY AND EASY OPERATION] When you are traveling or visiting relatives and friends, you don't have to worry about charging, because our chargers can be carried with the car and you can check every charging data by huge LCD screen on the charger. All you need is just a 220 V ~240 V NEMA 14-50 outlet to connect
[HIGH SECURITY] Our EV charger adopts High Strength ABS material, which has better quality and high durability. Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection, waterproof rating of IP66 and other safety protection measures. They can secure your car charging
[HIGH COMPATIBILITY] Unlike normal EV chargers, our EV chargers are compatible with most electric cars, which meet SAE J1772 standard. All of our products have passed CE certification and FCC certification, and the quality is superior

1 Electric parameter
1.1 Rated Frequency	50/60Hz
1.2 Rated current	8/10/13/16/32A
1.3 Rated voltage	single-phase, 230V±15%, 50/60Hz
2 Mechnical Parameter
2.1 IP Code	IP66
2.2 Charging Adapter Cable	5 meters cable or custom length
2.3 Dimensions	W × D × H = 240mm × 90mm × 70mm
2.4 Weight	＜5kg

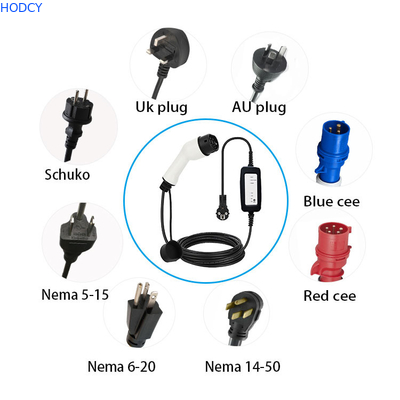

2.5 Input Plug Standard	Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
3 Functional Description
3.1 Charging Control Model	Plug and play
3.2 Display Screen	OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
3.3 Indicator Light	3 indicator lights (indicate 3 status include power, connect, charging and fault)
3.4 RCD type	Type A

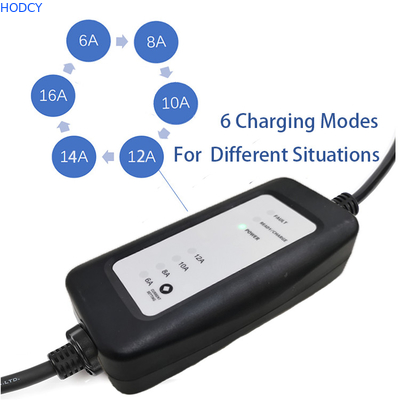

3.5 Adjustable output current	Button options: 8A/10A/13A/16/32A
3.6 Preset function	Preset charging time trough the button
3.7 Safety Protection	surge protection, over temperature, leakage, over/under voltage, over current, ground protection
4 Environmental Conditions
4.1 Operational environment	indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
4.2 Vibration	＜0.5G, no violent vibration and impact
4.3 Altitude	≤2000 meters
4.4 Storage Temperature	-30 ~ 75 ℃ (-22 ~ 167 ℉)
4.5 Operating Temperature	-30 ~ 55 ℃ (-22 ~ 131 ℉)
4.6 Operating humidity	95%RH, no water droplet condensation
