HODAS Main in Portable EV Charger, DC / AC fast EV charging Sations
HODAS Main in Portable EV Charger, DC / AC fast EV charging Sations
 |
| Place of Origin: | CHINA |
| Brand Name: | Hochiry |
| Certification: | TUV |
| Packaging Details: | 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container |
|---|---|
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Product Name: | Monocrystalline Solar Panel | Warranty: | 25 Years Output Power Guarantee |
|---|---|---|---|
| Solar Cell: | Mono 156mm*156mm | Material: | Monocrystalline Silicon |
| Number Of Cells: | 60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs | Solar Power (w): | 2000W |
| Max. Power: | 450watt 460watt 470watt 500watt | Solar Cells: | Monocrystalline,Polycrystalline,Amorphous Silicon |
| Frame: | Anodized Aluminium Alloy |

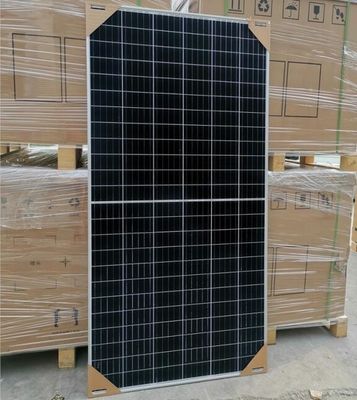

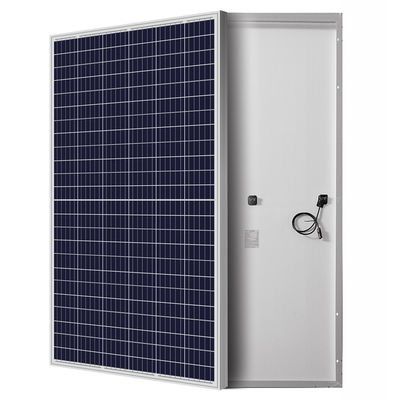

450watt 460watt 470watt 500watt Monocrystalline Silicon Solar Panel
Main features of Poly solar panel:
*Excellent low irradiance performance, PID resistance.
*Positive tight power tolerance of 3%
*Dual stage 100% EL Inspection warranting defect-free product
*Module Imp binning radically reduces string mismatch losses
*Warranted reliability and stringent quality assurances well beyond certified requirements
*Certified to withstand severe environmental conditions
1.Anti-reflective & anti-soiling surface minimise power loss from dirt and dust
2.Severe salt mist, ammonia & blown sand resistance, for seaside,farm and desert environments
3.Excellent mechanical load 2400Pa & snow load 5400Pa resistance
Mono144 Half Cells
| Moduel | LR4-72-435M | LR4-72-440M | LR4-72-445M | LR4-72-450M | ||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 435 | 324.9 | 440 | 328.6 | 445 | 323.3 | 450 | 336.1 |
| Open Circuit Voltage(Voc/V) | 48.7 | 45.7 | 48.9 | 45.8 | 49.1 | 46.0 | 49.3 | 46.2 |
| Short Circuit Current(Isc/A) | 11.39 | 9.21 | 11.46 | 9.27 | 11.53 | 9.33 | 11.60 | 9.38 |
| Voltage at Maximum Power(Vmp/V) | 40.9 | 38.1 | 41.1 | 38.3 | 41.3 | 38.5 | 41.5 | 38.6 |
| Current at Maximum Power(Imp/A) | 10.64 | 8.53 | 10.71 | 8.59 | 10.78 | 8.64 | 10.85 | 8.70 |
| Module Efficiency(%) | -40 °C to +85 °C | |||||||
Poly 60 Whole cells
| Moduel | TS-60-275P | TS-60-280P | TS-60-285P |
| Maximum Power at STC (Pmax) | 275W | 280W | 285W |
| Optimum Operating Voltage (Vmp) | 31.4V | 31.6 V | 31.7 V |
| Optimum Operating Current (Imp) | 8.76 A | 8.86 A | 9.00 A |
| Open Circuit Voltage(Voc) | 38.1V | 38.5 V | 38.9 V |
| Short Circuit Current(Isc) | 9.27A | 9.38 A | 9.46A |
| Module Efficiency | 16.8% | 17.1% | 17.4% |
| Operating Module Temperature | -40 °C to +85 °C | ||
| Maximum System Voltage | 1000/1500 V DC (IEC) | ||
Mono 120 Half Cells
| Moduel | LR4-60HPH-360M | LR4-60HPH-365M | LR4-60HPH-370M | LR4-60HPH-375M | ||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 360 | 268.8 | 365 | 272.6 | 370 | 276.3 | 375 | 280.0 |
| Open Circuit Voltage(Voc/V) | 40.5 | 38 | 40.7 | 38.2 | 40.9 | 38.3 | 41.1 | 38.5 |
| Short Circuit Current(Isc/A) | 11.35 | 9.17 | 11.43 | 9.25 | 11.52 | 9.32 | 11.60 | 9.38 |
| Voltage at Maximum Power(Vmp/V) | 34 | 31.7 | 34.2 | 31.8 | 34.4 | 32 | 34.6 | 32.2 |
| Current at Maximum Power(Imp/A) | 10.59 | 8.49 | 10.68 | 8.56 | 8.56 | 8.63 | 10.84 | 8.69 |
| Module Efficiency(%) | -40 °C to +85 °C | |||||||
