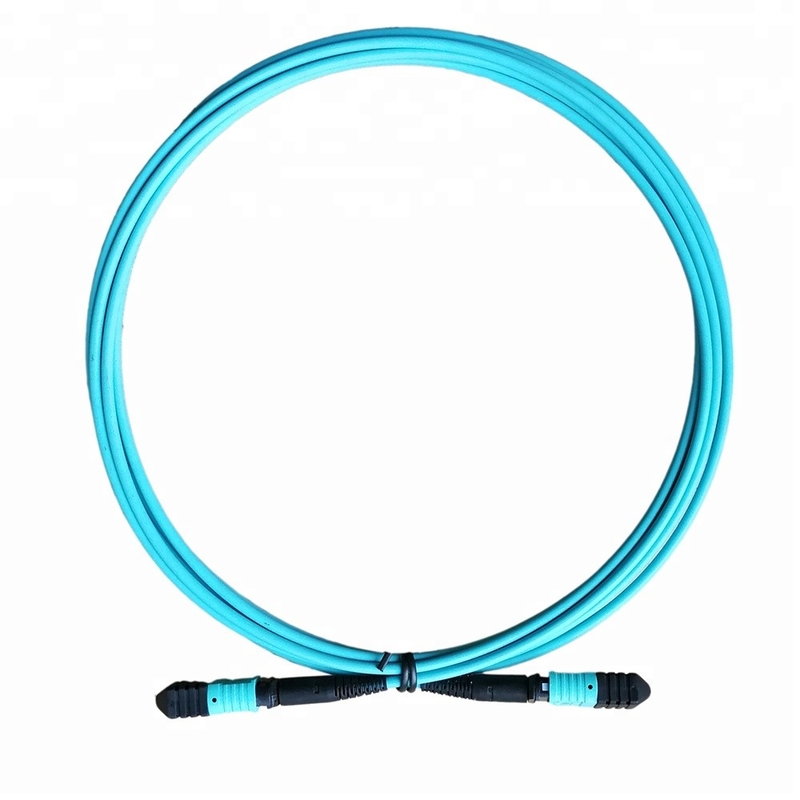

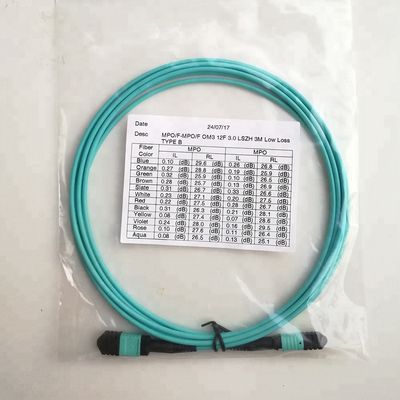

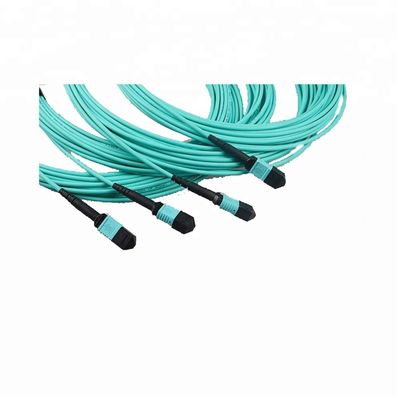

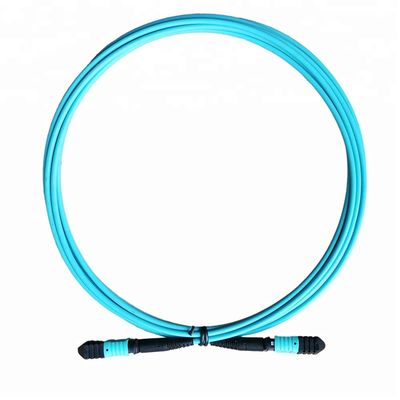

MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord

MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord

    • MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord
    • MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord
    • MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord
    • MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord
    • MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord
    • MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord

    Product Details:

    Place of Origin: CHINA
    Brand Name: HODCY
    Certification: CE ROHS
    Model Number: HDSPLCC108

    Payment & Shipping Terms:

    Minimum Order Quantity: 100PCS
    Price: 6.0USD/PCS
    Packaging Details: 1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS
    Delivery Time: 3-5 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 50000 Pieces per Week
    Contact Now
    Detailed Product Description
    Product Name: MTP MPO Patch Cord Application: 40G QSFP+ SR Module
    Connector: MPO/MTP Fiber Type: OM3 OM4
    Wavelength: 1260 To 1650nm Cable: 0.9/2.0/3.0 Mm
    Storage Temperature: - 45~+85℃ Return Loss: ≥55dB

    The MPO connector (known as multi-fiber push-on and also as multi-path push-on) is a multi-fiber connector defined according to IEC 61754-7 and TIA/EIA 604-5 that can accommodate up to 72 fibers in the tiniest of spaces, comparable to an RJ45 connector. MPO connectors are most commonly used for 12 or 24 fibers.



    Specifications

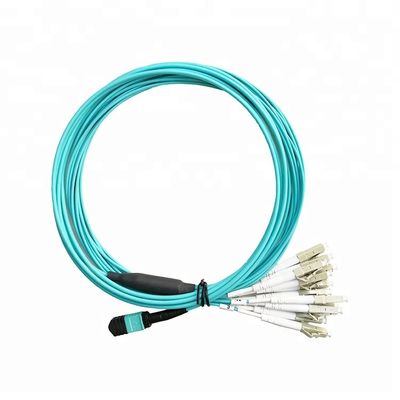

    Connector A
    MPO Female (pinless)
    Connector B
    LC UPC Duplex
    Fiber Mode
    OM3 50/125 μm
    Wavelength
    850/1300 nm
    40/100G Ethernet Distance
    100 m at 850 nm
    10G Ethernet Distance
    300 m at 850 nm
    Glass Fiber
    Corning/YOFC
    ISO9001 Compliancy Status
    Compliant
    MPO Connector IL
    0.35 dB Max. (0.15 dB Typ.)
    LC Connector IL
    ≤ 0.2 dB
    MPO Connector RL
    ≥ 20 dB
    LC Connector RL
    ≥ 20 dB
    Attenuation at 850 nm
    ≤ 2.3 dB/km
    Attenuation at 1300 nm
    ≤ 0.6 dB/km
    Cable Jacket
    LSZH
    Fiber Count
    8 Fibers
    Jacket OD
    3.0 mm
    Fan-Out Diameter
    2.0 mm
    Installation Tensile Load
    100 N
    Long-Term Tensile Load
    50 N
    Operating Temperature
    -10°C to 70°C
    Storage Temperature
    -40°C to 85°C





    Note: Maximum Bandwidths of Different Multimode Fibers
    OM1 – 62.5/125um – 10GBit up to 33 meters (108 feet)
    OM2 – 50/125um – 10GBit up to 82 meters (270 feet)
    OM3 – 50/125um, Laser Optimized – 10GBit up to 300 meters (984 feet)
    OM4 – 50/125um, Laser Optimized – 10GBit up to 550 meters (1805 feet)



    MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord

    MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch CordMPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord

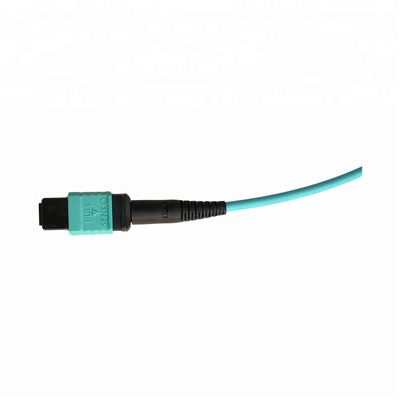

    0.35 dB Ultra Low IL Connector
    The MPO connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure a max.
    0.35 dB and typical lower than 0.15 dB IL.
    7.5 mm Minimum Bend Radius

    With BIF, our cable is designed for improved bend performance in reduced-radius applications such as residential or office
    environments which have less bend sensitivity

    MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo MTP Patch Cord
