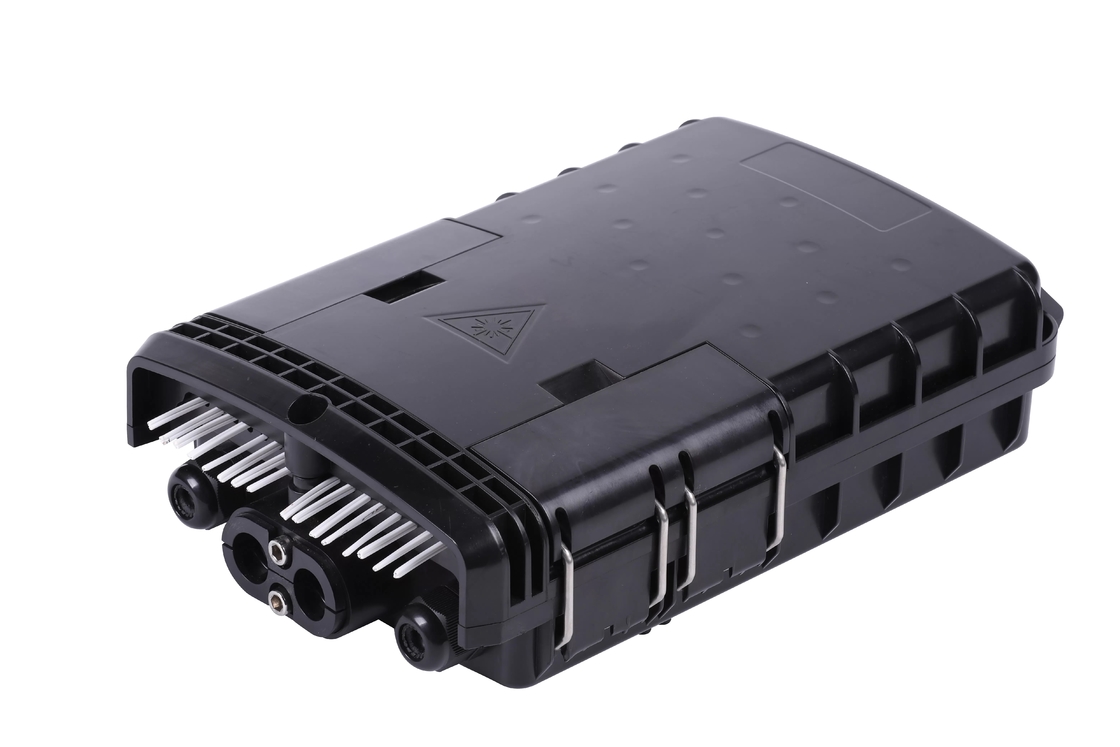

HDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable box

HDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable box

    • HDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable box
    • HDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable box
    • HDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable box
    • HDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable box

    Product Details:

    Place of Origin: CHINA
    Brand Name: HODCY
    Certification: FCC.CE,ROHS
    Model Number: HDS-305

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: USD/6.5-20.5/PCS
    Packaging Details: 56*37*62CM 23.4KG/12PCS
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000PCS/ Week
    Contact Now
    Detailed Product Description
    Type: Optical Fiber Distribution Box Mountable: Outdoor/Indoor Wall Mountable
    Material: PP /PC Feature: IP55/65 Outdoor Waterproof
    Application: FTTH FTTB FTTX Network Max Capacity: 96 Cores
    PLC Splitter: 1:8 PLC 2 PCS Optical Cable Ports: 2-Φ18mm 4-Φ10mm 16-Drop Cable
    Size(mm): 290×190×110mm

    HDS-303 96 Cores Fiber Optic Termination Box Fiber Access Terminal


    Features:

    1. The box body is made of ABS+PC fiber high quality engineering plastic material with excellent intensity.

    2. With good waterproof design, the product can be applied indoor and outdoor for wall-mounted, pole-mounting and aerial hanging.

    3. With safe shaped lock, the box can be opened and closed easily.

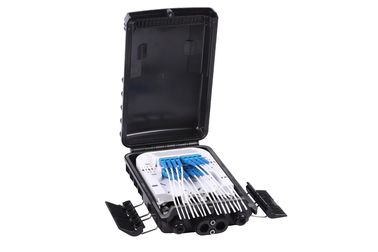

    4. The splice tray is designed with flip page and double layer structure, which is easy to be installed and maintained. For this design, splice and distribution can be can separately completely, which is more reasonable for layout.

    5. Protection Level: IP55

    6. The angle of opening box is not less than 120°

    Application:

    widely used in FTTH access network.
    Telecommunication Networks
    CATV Networks
    Data communications Networks
    Local Area Networks
    wall-mounted &pole-mounted& Aerial-hanging installation
    Suitable for 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable



    Specifications:
    Product name Specification Unit Quantity Remark
    Box bottom 　 PCS 1 　
    Box cover 　 PCS 1 　
    Cable holder 　 SET 4 Stainless steel
    Drop leaf and adapter panel 　 SET 1 　
    Waterproof connector 　 PCS 2 　
    Buckle 　 PCS 2 The color is same as box body’s
    Sealing part for box body 　 PCS 1 The color is same as box body’s
    Lock 　 SET 1 　
    Adapter 　 PCS 16 Can be optional as the customer’s request
    Pigtail 　 PCS 6 Can be optional as the customer’s request




    HDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable boxHDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable boxHDS-305 termination box 16 port ftth optical fiber distribution box ftth fiber optical cable box
