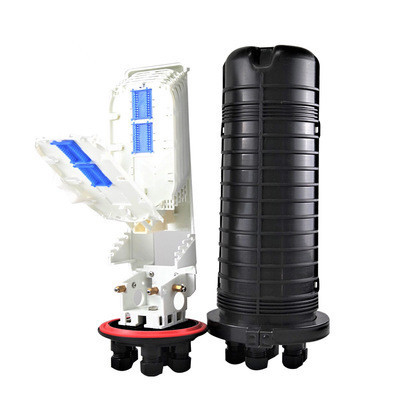

HDS-906 IP68 Waterproof Dome Vertical Type 144/288 Fiber Optical Splice Closure (FOSC)
Product Description
Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available.
The DOME type closure is also called Vertical closure. The input and output ports are at the bottom of the closure. DOME closure is more suitable for the application on accessing layer.
GreenTel provides various shapes closure of DOME type. All the closures we offered are with a great sealing performance. High quality plastic material also ensures the durability whether the closure is in air, in pipeline or buried underground.
Key Features
Protection grade:IP68
Material:PP,ABS
Entry ports: 5(2X18+4x12mm round )
Maximum Trays: 6 trays 144/216C
Maximum adapter:
Buffer storge: basket bracket mount
Dimension (HxD):540mm *160 mm
Environment temp: :-30℃~+60℃
Pressure:70kPa~106kPa
Sealing port: mechanical seal
Quality warrenty:2 years
12 . Life span:more than 25 years
Weight:4.5-5.0Kg
Package(mm): 6pcs/carton carton size:580*480*650
inner box size:565*240*210
Use stainless nut .
Suitable for duct ,overhead,bury
Main Technical Parameters
| Model name (Buyer’s range) |
Fiber optic splice closure HDS-DM01 |
| Description |
Fiber Optic Splice Closure. May be used for all fiber optic cable. Sheath retention & central strength member termination system included. Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack. Installation and reentry with a minimum of tools. Re-enterable and reusable. |
| Cable Port |
1 oval port Ø18mm and 4round ports Ø12mm |
| Capacity of FOSC |
144/288 (cores) |
| Fiber optic splice tray |
Max. 6 trays |
| IP Grade |
IP68 |
| Application |
aerial, underground, wall-mounting, duct-mounting and handhole- mounting. |
| Ambient temperature ranges |
From –40℃ to +65℃ |
| Physical Features |
Size, mm |
540*160 |
| Material |
Plastic |
| Color |
Black |
| Case |
See the samples from the Supplement No.6 |
| Complete Set |
Carton Box |
1 pcs |
| FOSC (cover+base+hoop) |
1 pcs |
| Seal fitting |
1 pcs |
| Fiber optic splice tray with cover |
2 pcs |
| Nylon tie |
24pcs |
| Numbering paper (1-12) |
4 pcs |
| Buffer tube 0,5m |
2 pcs |
| Heat-shrinkable protective sleeves 60mm |
24 pcs |
| Heat shrinkable fixing sleeve |
2- Ø 18 мм, 3-6-Ø 12 мм |
| Branching clip |
1 pcs |
| Earthing wire |
1 pcs |
| Aluminum foil paper |
1 pcs |
| Insulation tape |
1 pcs |
| Sealing tape |
1 pcs |
| Abrasive cloth |
1 pcs |
| Metal bracket |
1 pcs |
| Desiccant |
1 bag |
| Installation Manual |
1 pcs |
| sticker on the Carton Box |
HDS-DM01 |
Detail Image
How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ:
1. For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 30pcs.
3. OEM MOQ is 300pcs/model, Special cases can be negotiated.
Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.
Lead Time:
1. Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.
OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy:
We provide 3-5 years warranty for Fiber optical closure after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
