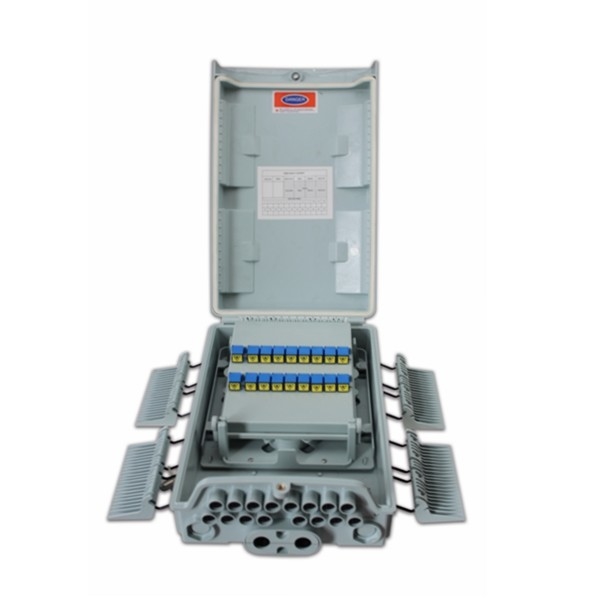

HDX-13 24 Core Fiber Optic Termination Box Fiber Access Terminal

HDX-13 24 Core Fiber Optic Termination Box Fiber Access Terminal

    • HDX-13 24 Core Fiber Optic Termination Box Fiber Access Terminal
    • HDX-13 24 Core Fiber Optic Termination Box Fiber Access Terminal
    • HDX-13 24 Core Fiber Optic Termination Box Fiber Access Terminal

    Product Details:

    Place of Origin: CHINA
    Brand Name: HODCY
    Certification: FCC.CE,ROHS
    Model Number: HDX-13

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: USD/6.5-20.5/PCS
    Packaging Details: 56*37*62CM 23.4KG/12PCS
    Supply Ability: 10000PCS/ Week
    Contact Now
    Detailed Product Description
    Type: Optical Fiber Distribution Box Mountable: Outdoor/Indoor Wall Mountable
    Material: PC ABS Size(mm): 345×220×95
    Feature: IP55/65 Outdoor Waterproof Application: FTTH FTTB FTTX Network

    16 Core Fiber Optic Termination Box 16 port optical fiber distribution box 2X16 Core FTTX Fiber Optic Box Splitter Box Black



    Features:

    ● Water-proof design with IP-65 Protection level.
    ● Integrated with flap-up splice cassette and adapter holder.
    ● Maximum 12F splice capacity,stainless anti-rust bolts and nuts.
    ● Easy for maintainance and expansion,neat cabling.
    ● Fiber bend radius control more than 40mm.
    ● 180 degree access with buckled lock structure.
    ● 2pcs of 1*8 PLC splitter can be installed
    ● 16pcs of mechanical ports for 3-7mm drop cable.
    ● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)

    Application:

    widely used in FTTH access network.
    Telecommunication Networks
    CATV Networks
    Data communications Networks
    Local Area Networks
    wall-mounted &pole-mounted& Aerial-hanging installation
    Suitable for 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable



    Specifications:
    Fiber Access Terminal HDX-13
    Material Size Max Capacity Nos of adapter Weight Color
    PC+ABS AxBxC(mm) Splice 12 fibers LGX PLC splitter 16pcs SC/UPC 1.85kg Grey/Black
    340x220x95   2pcs of 1x8(SC) or 16pcs SC/APC





    Operating temperature: -40°C - +70°C
    Storage temperature: -40°C - +70°C
    Relative humidity: ≤90% (when the temperature is below 30°C)
    Atmosphere pressure 62Kpa - 106Kpa
    Insulating resistance: ≥2x104 MΩ / 500V (DC)
    Insertion loss: IL≤0.30dB(PC),IL≤0.30dB(APC)
    Return loss: PC≥40.0dB ,UPC≥50.0dB,APC≥60.0dB
    Interchangeability ≤0.20dB



    HDX-13 24 Core Fiber Optic Termination Box Fiber Access TerminalHDX-13 24 Core Fiber Optic Termination Box Fiber Access Terminal
