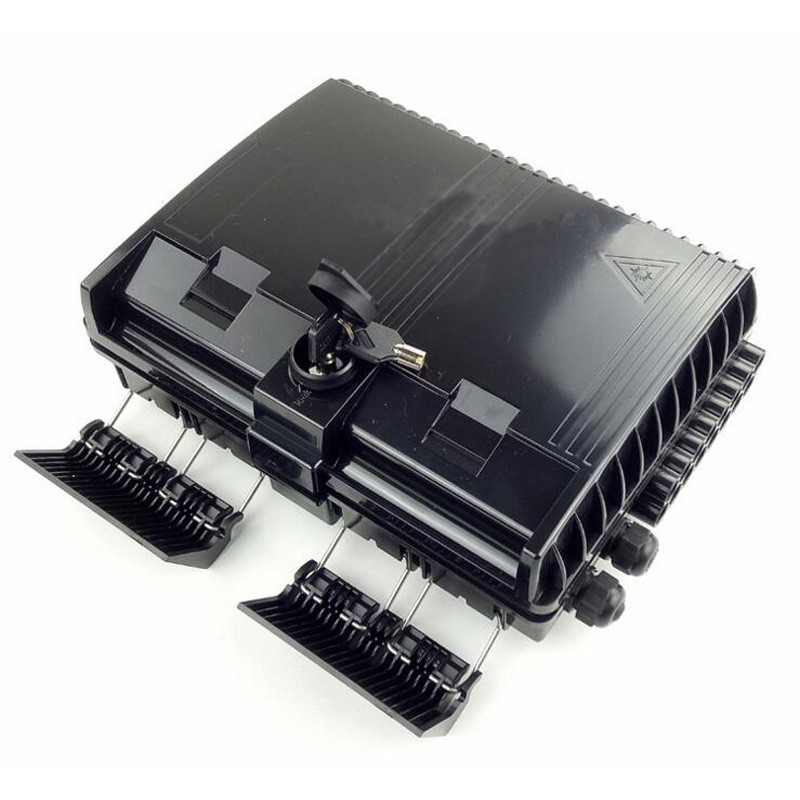

HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box

HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box

    • HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box
    • HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box
    • HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box
    • HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box
    • HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box
    • HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box
    • HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box

    Product Details:

    Place of Origin: CHINA
    Brand Name: HODCY
    Certification: FCC.CE,ROHS
    Model Number: HDX-09B

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: USD/6.5-20.5/PCS
    Packaging Details: 56*37*62CM 23.4KG/12PCS
    Supply Ability: 10000PCS/ Week
    Contact Now
    Detailed Product Description
    Type: Fiber Optic Box Splitter Box Mountable: Outdoor/Indoor Wall Mountable
    Material: PC ABS SMC Size(mm): 295×220×85
    Feature: IP55/65 Outdoor Waterproof Application: FTTH FTTB FTTX Network

    HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box Black

    Features:



    Industry Standard User Interface, be made of high impact plastic.
    Can accommodate 1x4 & 1X8 & 1X16PLC splitter.
    Anti-UV, Ultra violet resistant and rainfall resistant.
    Up to 24 FTTH drops.
    Wall and pole mountable.
    2 inlet ports, 8~24 outlet ports.
    Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
    Job stress: 70 kpa to 108 kpa;
    Using the temperature:- 40 ~ + 60 ºC
    Relative humidity: ≤95% (+ 40 ºC).
    Protection grade: IP55.

    Application:

    widely used in FTTH access network.
    Telecommunication Networks
    CATV Networks
    Data communications Networks
    Local Area Networks

    Specifications:



    Operating temperature: -40°C - +70°C
    Storage temperature: -40°C - +70°C
    Relative humidity: ≤90% (when the temperature is below 30°C)
    Atmosphere pressure 62Kpa - 106Kpa
    Insulating resistance: ≥2x104 MΩ / 500V (DC)
    Insertion loss: IL≤0.30dB(PC),IL≤0.30dB(APC)
    Return loss: PC≥40.0dB ,UPC≥50.0dB,APC≥60.0dB
    Interchangeability ≤0.20dB





    HDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter BoxHDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter BoxHDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter BoxHDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter BoxHDX-09B 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Box Splitter Box
