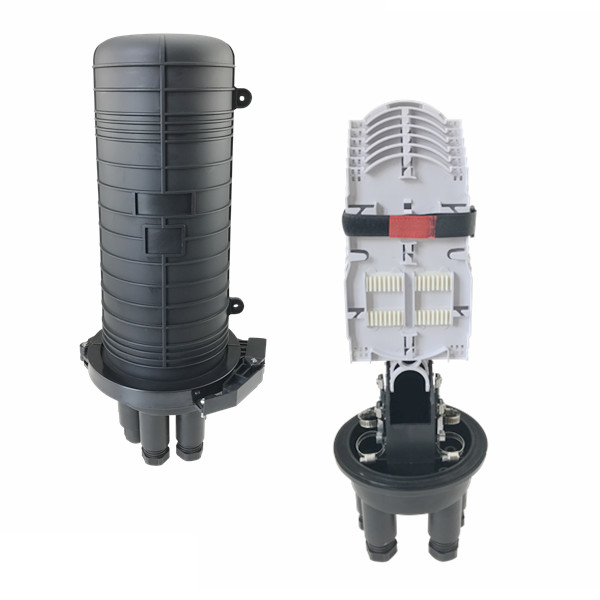

HDS-906 IP65 Waterproof Dome Vertical Type 144 Fiber Optical Splice Closure (FOSC)
Product Description
Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available.
The DOME type closure is also called Vertical closure. The input and output ports are at the bottom of the closure. DOME closure is more suitable for the application on accessing layer.
GreenTel provides various shapes closure of DOME type. All the closures we offered are with a great sealing performance. High quality plastic material also ensures the durability whether the closure is in air, in pipeline or buried underground.
Key Features
● Full mechanical seal
● Protection level reaches IP68
● High Quality Plastic body material ensure the durability
● Suitable for Φ5mm~Φ38mm cables
● Aerial, underground, pipeline,man-holes,hand-holes assembling
● Adapt to the ambient temperature from -40℃ to +65℃
Main Technical Parameters
| Model name (Buyer’s range) |
Fiber optic splice closure HDS-906 |
| Description |
Fiber Optic Splice Closure. May be used for all fiber optic cable. Sheath retention & central strength member termination system included. Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack. Installation and reentry with a minimum of tools. Re-enterable and reusable. |
| Cable Port |
1 oval port Ø30x45mm and 4round ports Ø20mm |
| Capacity of FOSC |
144 (cores) |
| Fiber optic splice tray |
Max. 4 trays |
| IP Grade |
IP68 |
| Application |
aerial, underground, wall-mounting, duct-mounting and handhole- mounting. |
| Ambient temperature ranges |
From –40℃ to +65℃ |
| Physical Features |
Size, mm |
475x210 |
| Material |
Plastic |
| Color |
Black |
| Case |
See the samples from the Supplement No.4 |
| Complete Set |
Carton Box |
1 pcs |
| FOSC (cover+base+hoop) |
1 pcs |
| Seal fitting |
1 pcs |
| Fiber optic splice tray with cover |
2 pcs |
| Nylon tie |
24pcs |
| Numbering paper (1-12) |
4 pcs |
| Buffer tube 0,5m |
2 pcs |
| Heat-shrinkable protective sleeves 60mm |
24 pcs |
| Heat shrinkable fixing sleeve |
1- Ø 30-45 мм, 3-Ø 20 мм |
| Branching clip |
1 pcs |
| Earthing wire |
1 pcs |
| Aluminum foil paper |
1 pcs |
| Insulation tape |
1 pcs |
| Sealing tape |
1 pcs |
| Abrasive cloth |
1 pcs |
| Metal bracket |
1 pcs |
| Desiccant |
1 bag |
| Installation Manual |
1 pcs |
| sticker on the Carton Box |
HDS-903 |
Detail Image
How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ:
1. For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 30pcs.
3. OEM MOQ is 300pcs/model, Special cases can be negotiated.
Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.
Lead Time:
1. Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.
OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy:
We provide 3-5 years warranty for Fiber optical closure after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
