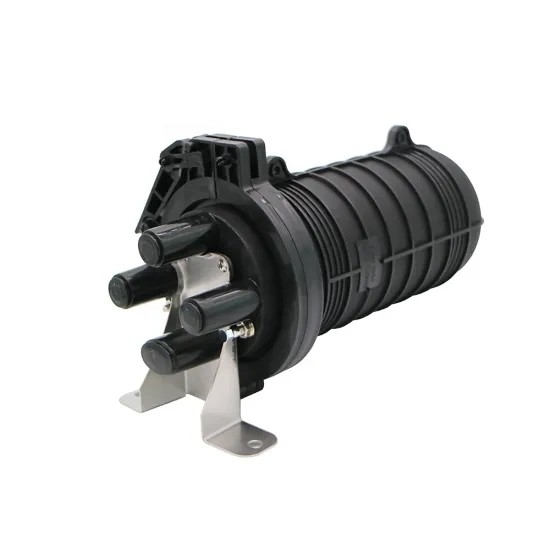

Dome Mechanical Sealing and Heat shrink sealing Fiber Optical Cable Splice Closure
Product Description
Fiber Optic Splice Closure (FOSC) is a member of closure series, the product adopts fully-mechanical sealing structure, only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 13mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection.
Key Features
• 1. It could be installed 36pcs SC/PC Pigtails of 1.5
• 2. It applies to PLC splitter with Max ratio 2:32 or 2*2:16
• 3. This model has four small round ports and one large round port
• 4. The Max quantity of SC adaptor is 36pcs. (Other types of adaptor could be customized)
• 5. The sealing component is made from vulcanized rubber
• 6. The sealing method adopts screw pressure, sealing performance is excellent, convenient to re-open, especially suitable for optical splitter used
• 7. Adopt modified PP material with high strength and anti-corrosion to make the closure have a longer lifetime and excellent sealing performance
• 8. There are various sealing accessories of soft cable to be chosen
Main Technical Parameters
| 1. Environmental Temperature: -40ºC~+60ºC |
| 2. Air Pressure: 70~106KPa |
| 3. Tensile Strength: >1000N |
| 4. Pressure: >2000N/10cm2, 1min |
| 5. Insulation Resistance: >2×104MΩ |
| 6. Voltage Resistance: under 15KV DC and 1 min, no puncture, no arc-over |
Specifications
• Applies to PLC splitter
• Fully-mechanical sealing structure
• IP safety rate is IP68
• The sealing method adopts screw pressure
• This model is suitable for different methods of branch connection, including branching of uncut cable
• It could be used for aerial, pole-mounting, wall-mounting and underground application
• The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment
• Number of fibers: according to your requirement
• Length: 420 mm, Diameter: 190 mm
• Weight:3kg
Note: This fiber splice closure belongs to fiber optic splitter type and it does not come with any adapters and fiber splitters. If any needs on fiber adapters and fiber splitters, you need to purchase it separately.
