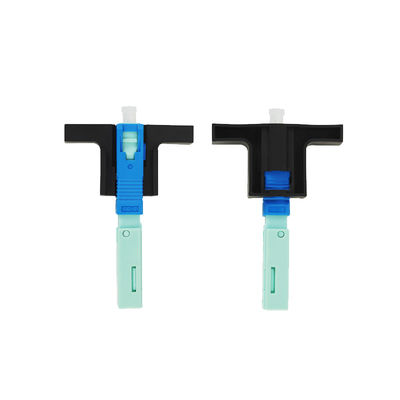

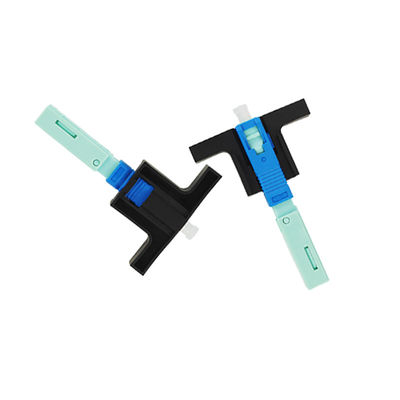

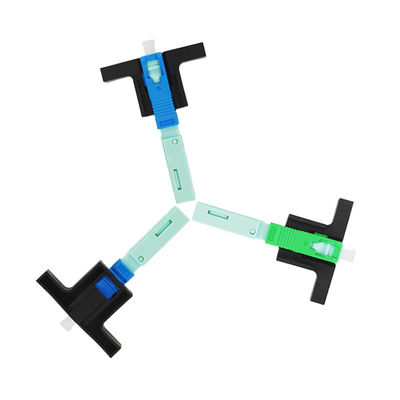

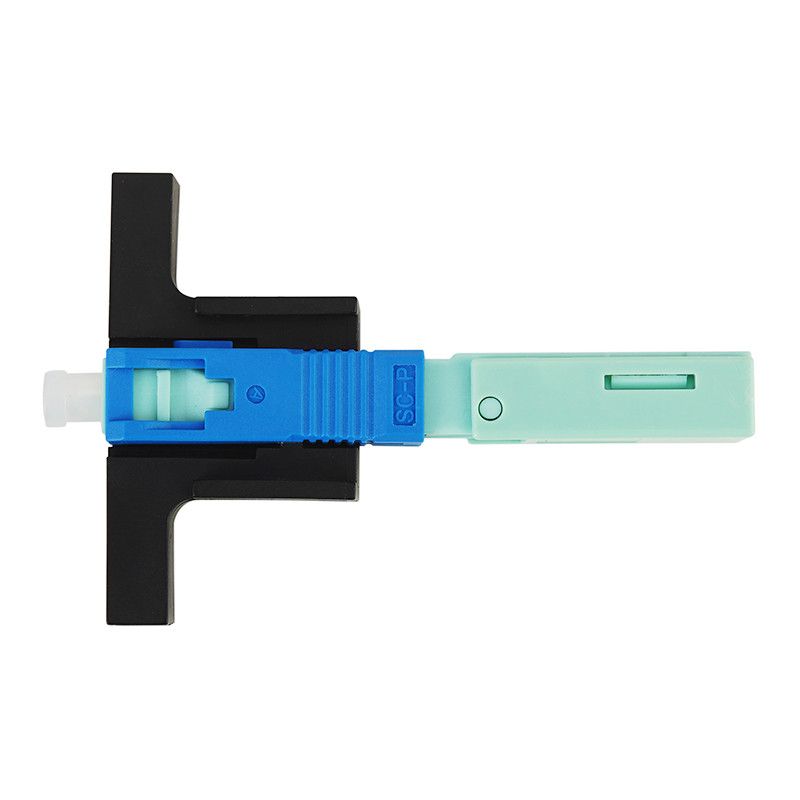

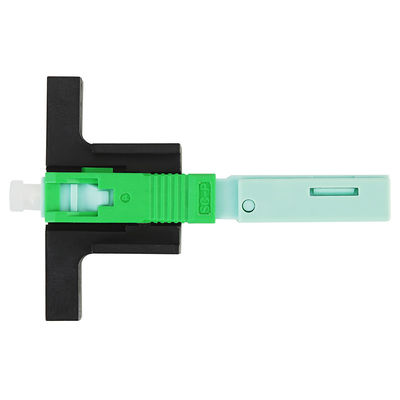

SC Field Assembly Optical Connector SC/APC Fast Connector
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Feature:
·Low insertion loss ,high return loss;
·Reliable optical performance;
·Good connection stability;
·Convenient for field installation;
·Installs fast,Operates easy ;
·Low cost.
| Item |
Parameter |
| Cable Scope |
3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable |
| Size |
51*9*7.55mm |
| Coating Diameter |
250μm |
| Mode |
SM |
| Operation Time |
about 15s(exclude fiber presetting) |
| Insertion Loss |
≤ 0.3dB(1310nm & 1550nm) |
| Return Loss |
≤ -50dB for UPC, ≤ 55dB for APC |
| Success Rate |
>98% |
| Reusable Times |
>5 times |
| Tighten Strength of Naked Fiber |
>5 N |
| Tensile Strength |
>30 N |
| Temperature |
-40 ~ +85 C |
| On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
| Mechanical Durability(500 times) |
IL ≤ 0.3dB |
| Drop Test |
IL ≤ 0.3dB |
Application field:
1.Applied to open FTTH fiber terminal
2.Used in closure boxes, cabinets, teminal boxes, etc.
3.Recovery and maintenance in fiber breakage and other accidents
4.LAN, WAN, data and video transmission
5.Construction and maintenance of fiber access for end users
6.Fiber entry for mobile base stations
