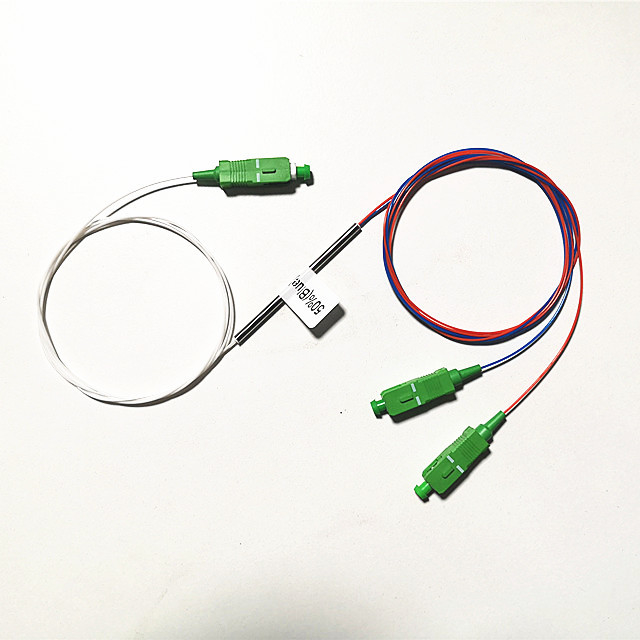

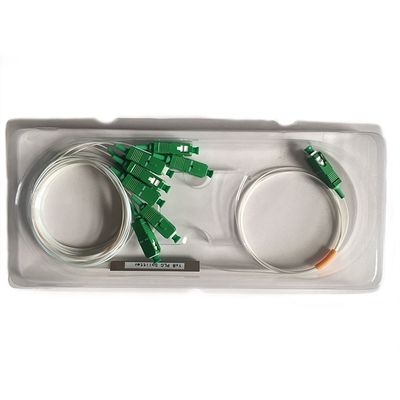

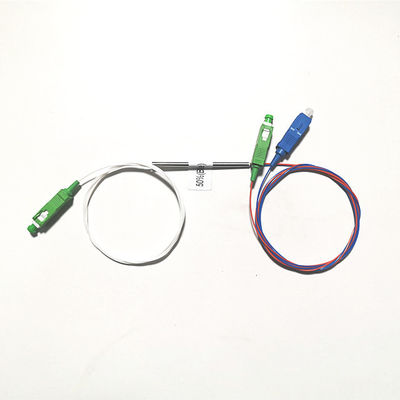

PSM 1X2-PLC SC/APC G.657A GPON EPON FTTH PLC splitter 900um steel tube PLC fiber optic splitter

Product Details:

Place of Origin:	CHINA
Brand Name:	HODCY
Certification:	CE ROHS
Model Number:	PSM 1X2-PLC SC/APC

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	6.0USD/PCS
Packaging Details:	1PCS: 26224cm ; 50PCS :654338cm/9.38KGS
Delivery Time:	3-5 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50000 Pieces per Week

Contact Now

Detailed Product Description

Product Name:	Steel Tube PLC Fiber Optic Splitter	Application:	EPON, GPON, BPON, FTTX, FTTH Network

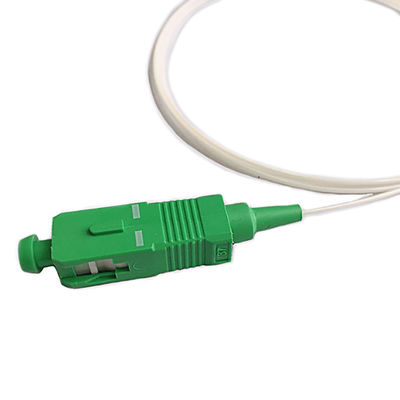

Connector:	SC/APC	Fiber Type:	G657A1,G657A2,G652D
Branchs:	1x2	Wavelength:	1260 To 1650nm
Cable:	0.9/2.0/3.0 Mm	Storage Temperature:	- 45~+85℃
Insertion Loss:	≤0.1dB	Return Loss:	≥55dB
Specs:	PSM 1X4-PLC SC/APC, G.657A, Ф900um, 1M

Steel Tube Fiber Optic Splitter:

The fiber optic splitter is one of the most important passive devices in the optical fiber link. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.

It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.

Main characteristics:

• Main passive PON component

• Wave range 1260nm-1650nm

• Best attenuation rates

• Low insertion loss

• Large directivity

• Low PDL level

Specification

900um steel tube fiber optic splitter technical specifications
Model name	PSM 1X2-PLC SC/APC
Wavelength(nm)	1260-1650
Free Sample	YES
Material	PVC;ABS
Design	OEM & ODM
Connectors	FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
Connectors	fiber optic connectors are available
Parameters	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity (dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss (dB)	≥50
Directivity (dB)	≥55
Temperature Range (°C)	-40~+75
Storage Temperature (°C)	-40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.

Application

1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems
